Removing Rear Right Coolant Pipe
WARNING: This page is about a different variant/trim than selected.
- Remove rear right -1-
coolant pipe.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

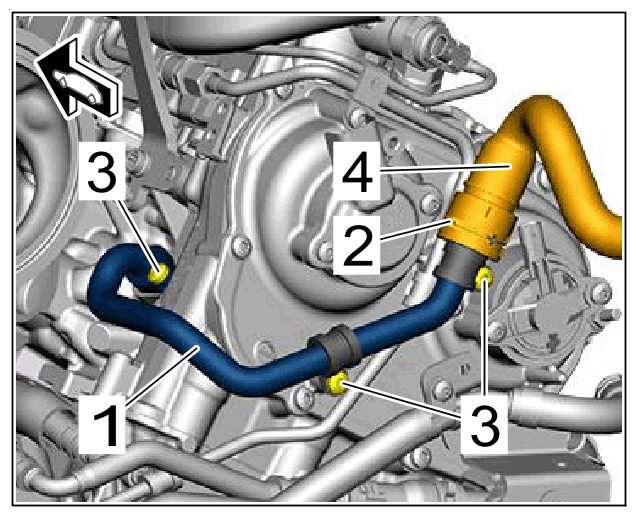

Rear right coolant pipe
- 1.1 Release retaining clip -2-
.
- 1.2 Unscrew screws -3-
.
- 1.3 Release rear right coolant pipe -1-
from cylinder head and coolant hose -4-
.
- 1.4 Catch escaping coolant and close off line connections using suitable stoppers.
