Removing Rear Left Coolant Pipe

1. Remove rear left -1-  coolant pipe.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

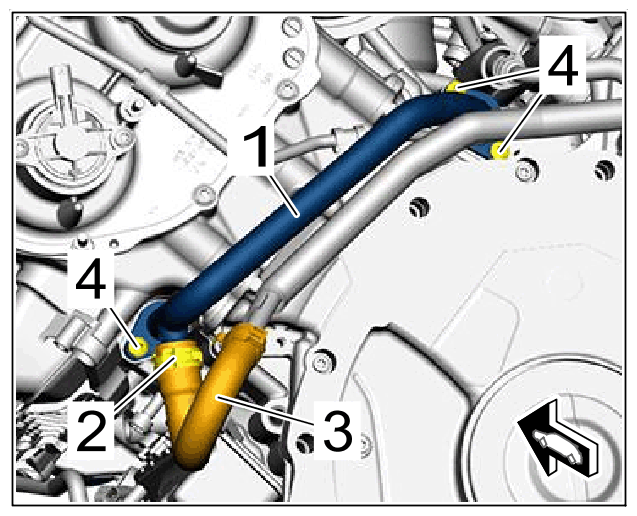

Rear left coolant pipe

1. 1.1 Open spring band clamp -2-  using > VAS 6890 - spring band clamp pliers  and pull off coolant hose -3-  .
2. 1.2 Catch escaping coolant and close off line connections using suitable stoppers.
3. 1.3 -4-  Unscrew screws and pull -1-  off rear left coolant pipe.
4. 1.4 Catch escaping coolant and close off line connections using suitable stoppers.
