Remove The Coolant Switching Valve
WARNING: This page is about a different variant/trim than selected.
- Remove the coolant pipe switching valve -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

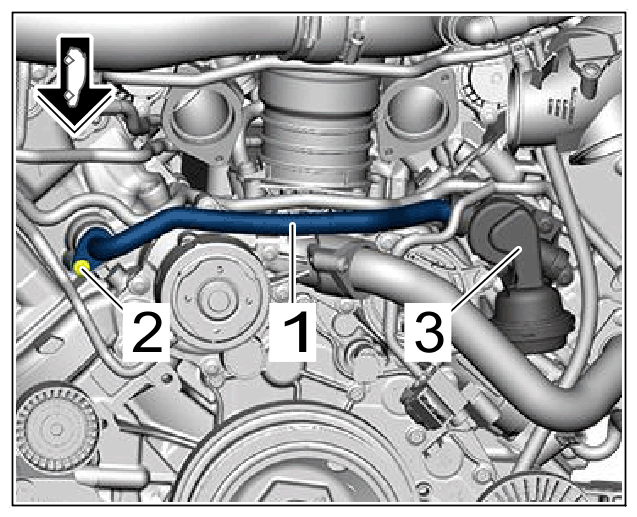

Coolant pipe switching valve
- 1.1 Unscrew screws -2-
.
- 1.2 Pull coolant pipe for switching valve -1-
out -3-
of the switching valve.
- 1.3 Catch escaping coolant and close off line connections using suitable stoppers.
