Removing Pulley
WARNING: This page is about a different variant/trim than selected.
Information
The pictures shown in this document may differ from the original.

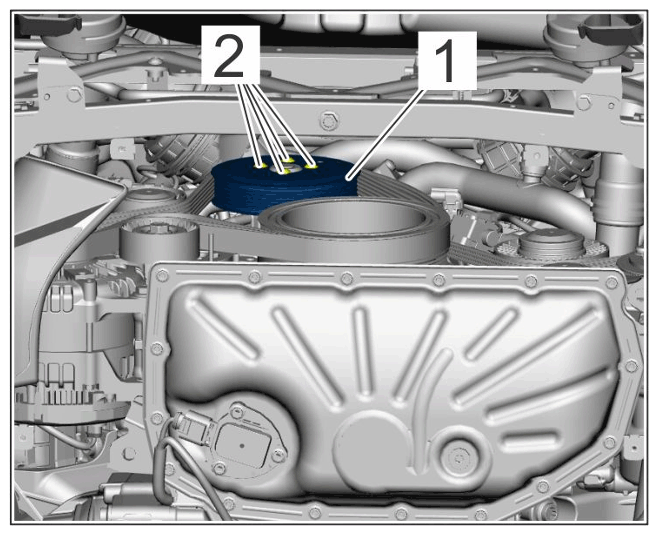

- Loosen pulley -1-
.
- 1.1 Only loosen screws -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pulley
- Depending on model:
Loosen the generator drive belt.
> Refer to the appropriate service information.
- Remove pulley -1-
.
- 3.1 Remove screws -2-
.
- 3.2 Remove pulley -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pulley
