Installing Additional Coolant Pump

1. 1.1 Position additional coolant pump holder -1-  , fit double screws securing holder to chain housing cover -3-  and tighten them.

   > Tightening torque 9 Nm (6.6 ftlb.)

2. 1.2 Fit and tighten screws securing additional coolant pump to holder -2-  .

   > Tightening torque 1.5 Nm (1.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional coolant pump (right cylinder bank)

1. 2.1 Position coolant line and push on hose.
2. 2.2 Tighten clamp -2-  .
3. 2.3 Fit and tighten nut -3-  .

   > Tightening torque 9 Nm (6.6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

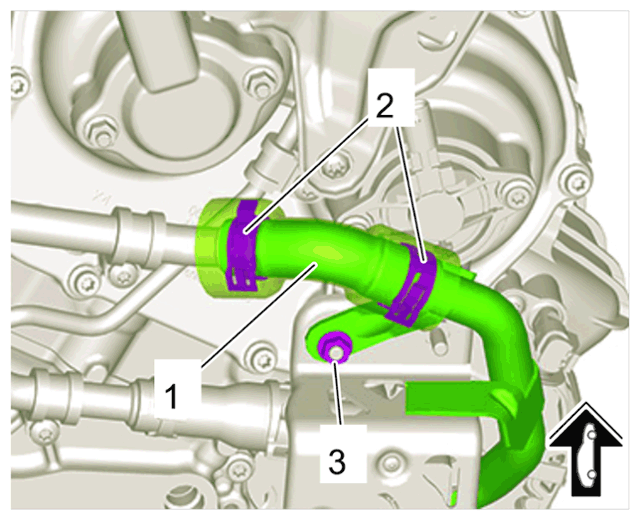

Upper coolant line
