Removing Coolant Reservoir

WARNING: This page is about a different variant/trim than selected.
  1. Remove coolant reservoir -1-  .

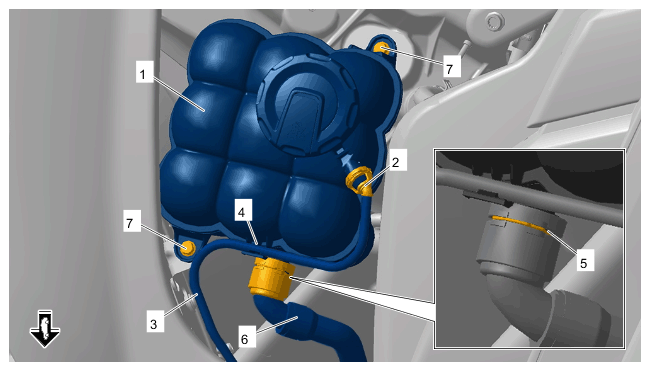

G15210202Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant reservoir

  1. 1.1 Lift up safety clip -5-  using a suitable tool and disconnect coolant line -6-  .
  2. 1.2 Unclip coolant return line -3-  from holder -4-  on the reservoir -1-  .
  3. 1.3 Press release buttons for coolant line connection -2-  on both sides and pull coolant line -3-  off the reservoir -1-  .
  4. 1.4 Unscrew screws on coolant reservoir -7-  .
  5. 1.5 Lift up coolant reservoir and release and disconnect electric plug connection on the floor of the coolant reservoir.
  6. 1.6 Remove coolant reservoir -1-  .
