Removing Cooling Air Flaps (Top)

1. Loosen wire harness for radar sensor.

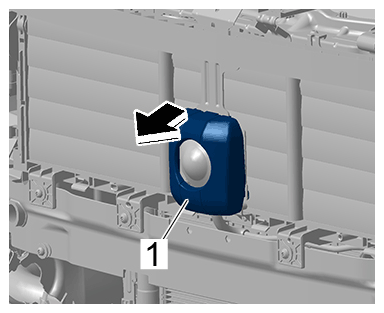

   1. 1.1 -1-  Unclip -Arrow-  cover and remove it.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cover

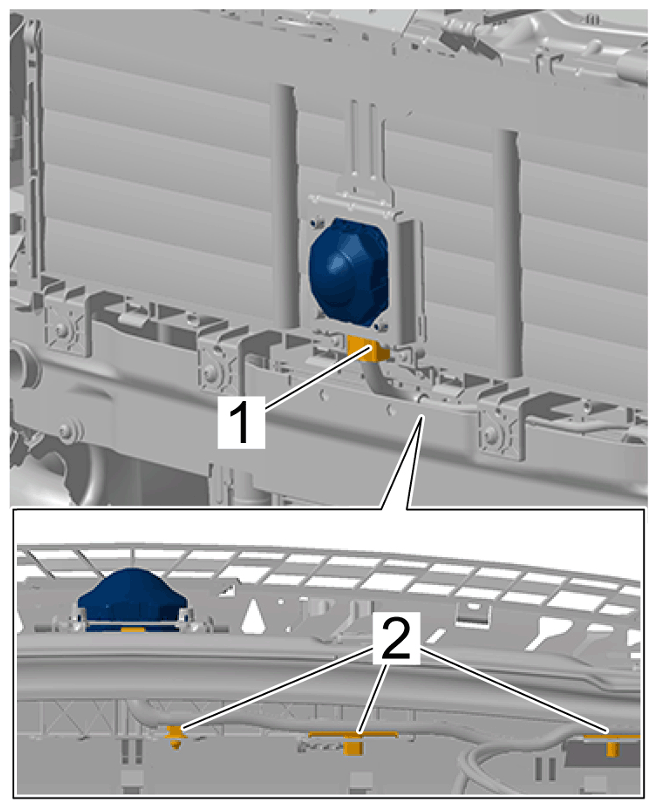

   2. 1.2 Release electric plug connection -1-  and disconnect it.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connection

   3. 1.3 Unclip wire harness from (upper) cooling-air flaps -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire harness

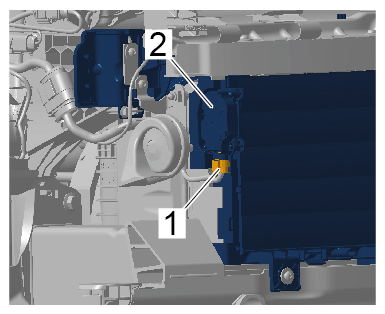

2. Release and disconnect electric plug connection -1-  from drive mechanism for (upper) cooling-air flaps -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection on drive mechanism for (upper) cooling-air flaps

3. Disconnect antenna wire harness.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Antenna wire harness

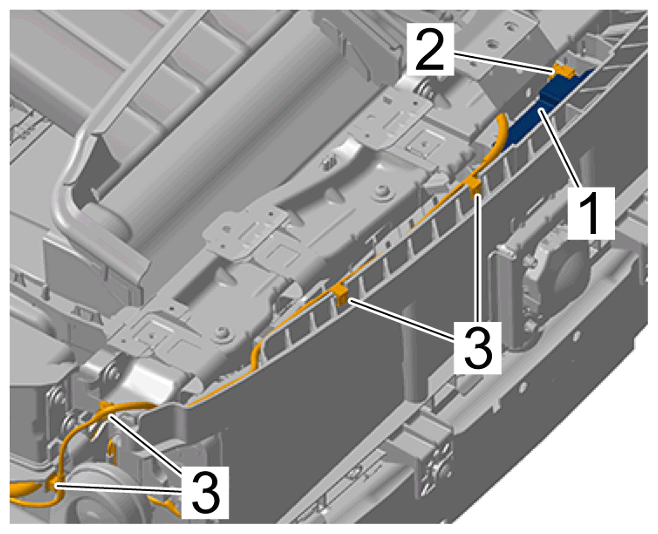

   1. 3.1 Release electric plug connection -2-  and disconnect it.
   2. 3.2 Unclip antenna -1-  from cross member -3-  .
   3. 3.3 Guide antenna -1-  out of the cross member and set it aside.

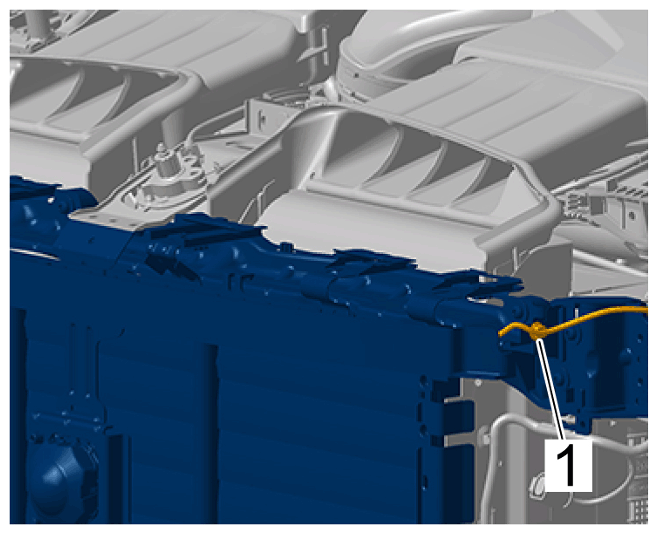

4. Unclip electric wire harness for antenna -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric wire harness for antenna

5. Unscrew screws -1-  from release element.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws on release element

6. Unscrew screws -2-  from bumper.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws on bumper

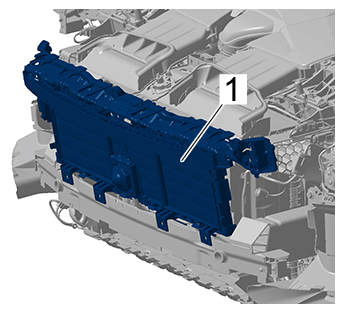

7. Swivel out and remove (upper) cooling-air flaps -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cooling-air flaps (upper)
