Removing (Lower) Cooling-Air Flaps

1. Disconnect electric line on motor for cooling-air flaps.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

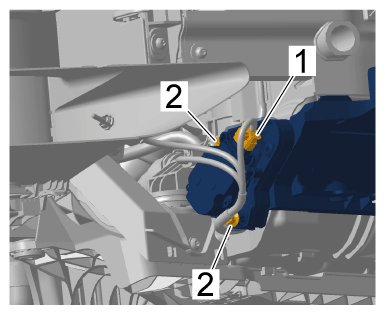

   Electric plug connection

   1. 1.1 Release electric plug connection -1-  and disconnect it.
   2. 1.2 Unclip line bracket -2-  .
2. Remove lower cooling-air flaps -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

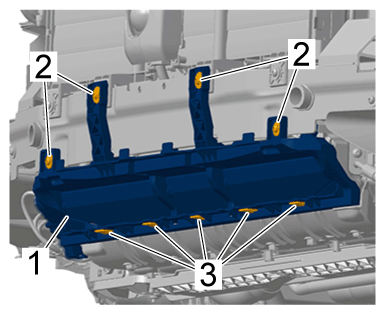

Cooling-air flaps, lower

1. 2.1 Unscrew screws -2-  .
2. 2.2 Unclip and remove (lower) cooling-air flaps -1-  from holders -3-  .
