Removing supporting mount

WARNING: This page is about a different variant/trim than selected.
  1. Remove supporting mount -1-  .

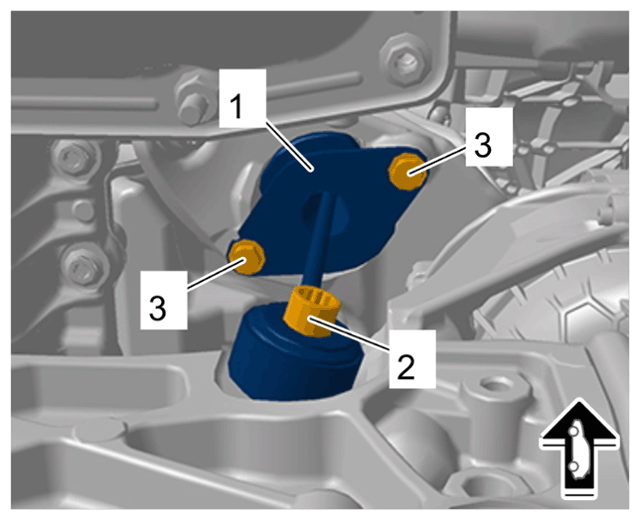

G15209690Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Supporting mount

  1. 1.1 Unscrew screw securing supporting mount to front-axle carrier -2-  .
  2. 1.2 Unscrew screws securing supporting mount to engine mount bracket -3-  and remove supporting mount -1-  .
