Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | De... | Type | Basic v... | Toleran... | Toleran... |
|---|---|---|---|---|---|

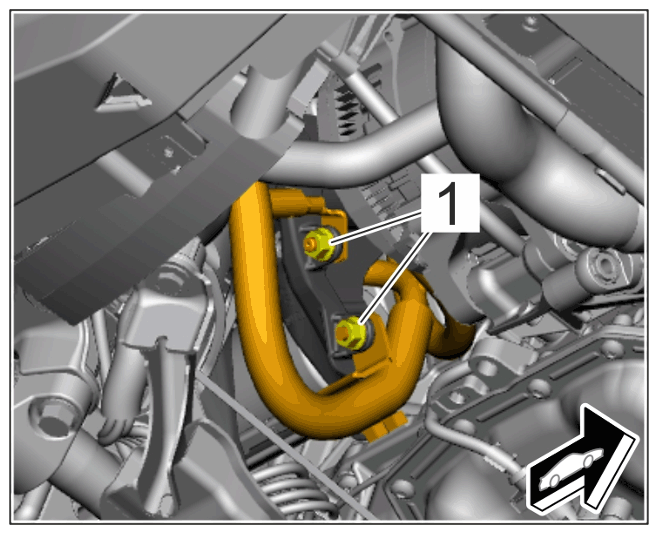

| Ground line on engine carrier | Item 1 | Tightening torque | 20 Nm (14.8 ftlb.) | ||
|
Ground line on engine carrier |
|||||
| Screws securing engine carrier to engine | M10 x 35 | Tightening torque | 55 Nm (40.6 ftlb.) | ||
| Screw securing engine support to crankcase | M10 x 35 | Tightening torque | 55 Nm (40.6 ftlb.) | ||
