WM, 100119 Removing And Installing Engine (V6 Hybrid): Tools

WARNING: This page is about a different variant/trim than selected.

Tool denomination	Type	Tool number	Image

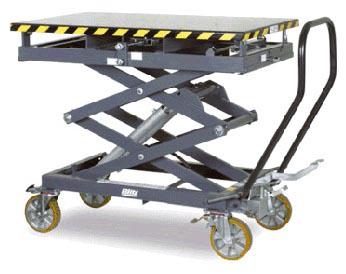

Master Gear unit elevating platform	Vehicle-specific workshop equipment	> VAS 6832	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

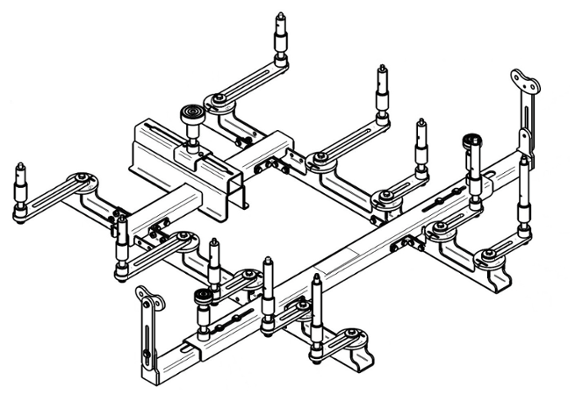

Universal assembly tool	Vehicle-specific workshop equipment	> VAS 6832/8	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

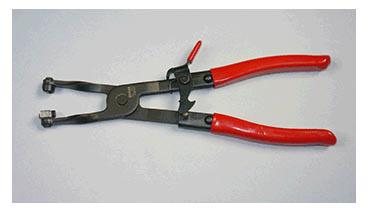

spring band clamps pliers	Vehicle-specific workshop equipment	> VAS 6890	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

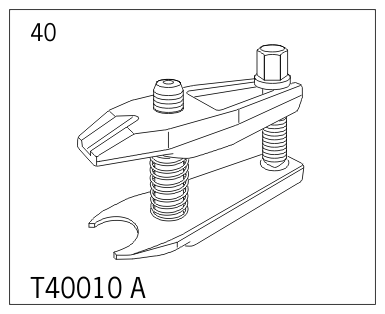

ball joint puller	VW tool	> T40010A	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

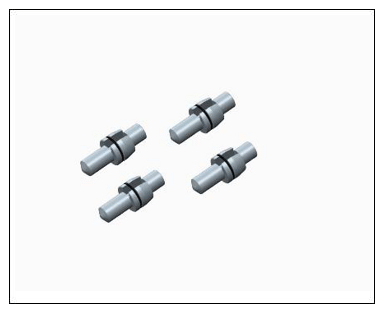

Locating pin	VW tool	> T40327	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

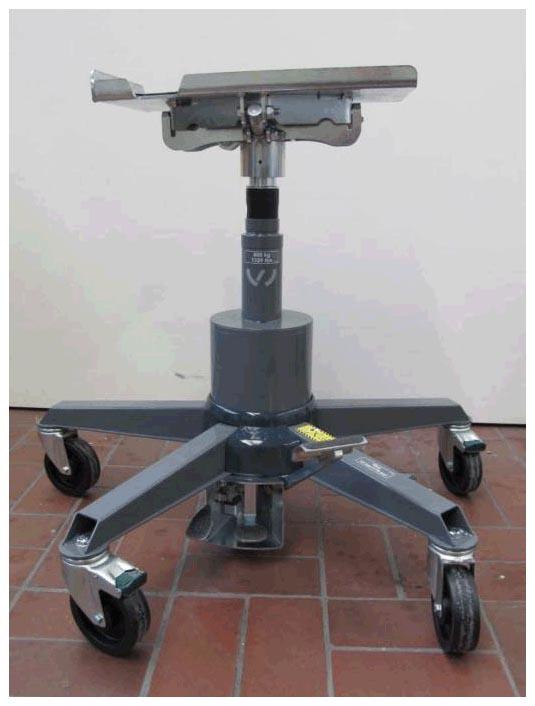

engine and gearbox jack	General workshop equipment	> VAS 6931	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

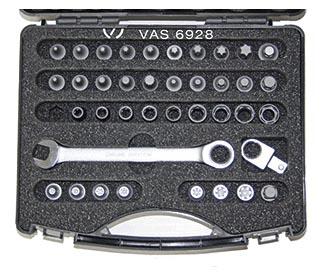

socket/bit set, 39-piece	Vehicle-specific workshop equipment	> VAS 6928	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
