Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	De...	Type	Basic v...
Cable holder to wheel bearing housing	Internal serration screw, M8 x 25	Tightening torque	20 Nm (15 ftlb.)
Cross member to body	Screw, M10 x 50	Tightening torque	55 Nm (41 ftlb.)

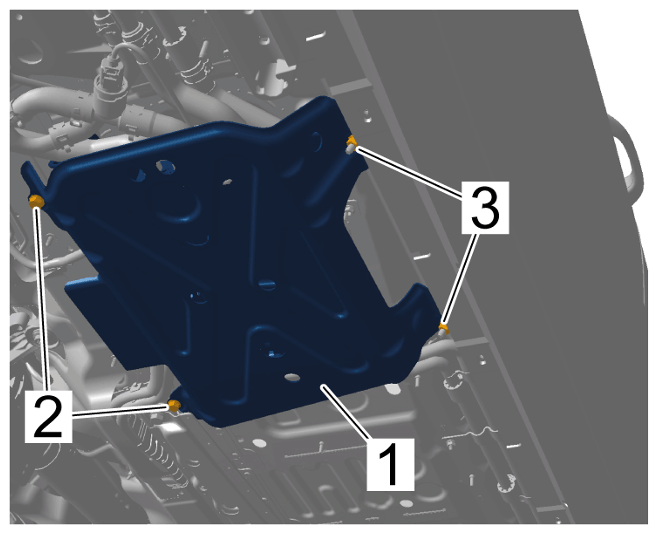

Fastening nuts for cover on power electronics for high-voltage system	Item 3	Tightening torque	25 Nm (19 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Underride guard
Fastening screws for cover on power electronics for high-voltage system	Item 2	Tightening torque	25 Nm (19 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Underride guard

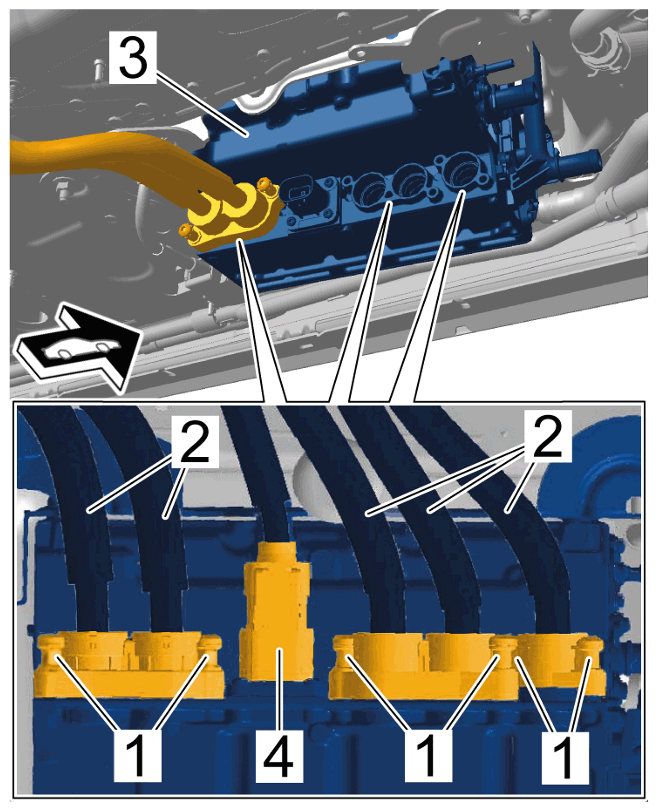

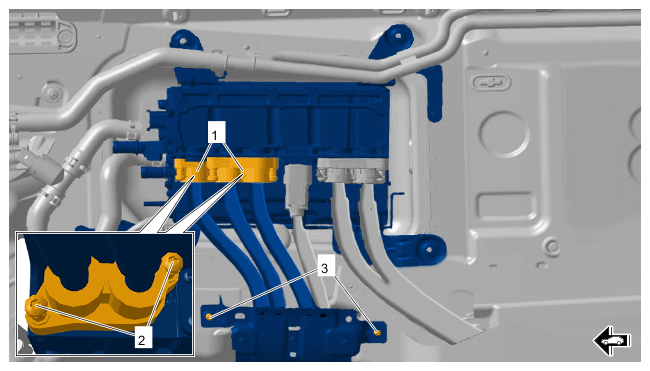

Tighten fastening screws securing high-voltage lines to power electronics for high-voltage system	Item 1	Tightening torque	7 Nm (5.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Fastening nut securing line guide for high-voltage line to underbody	Item 3	Torque	5 Nm (3.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. High-voltage lines

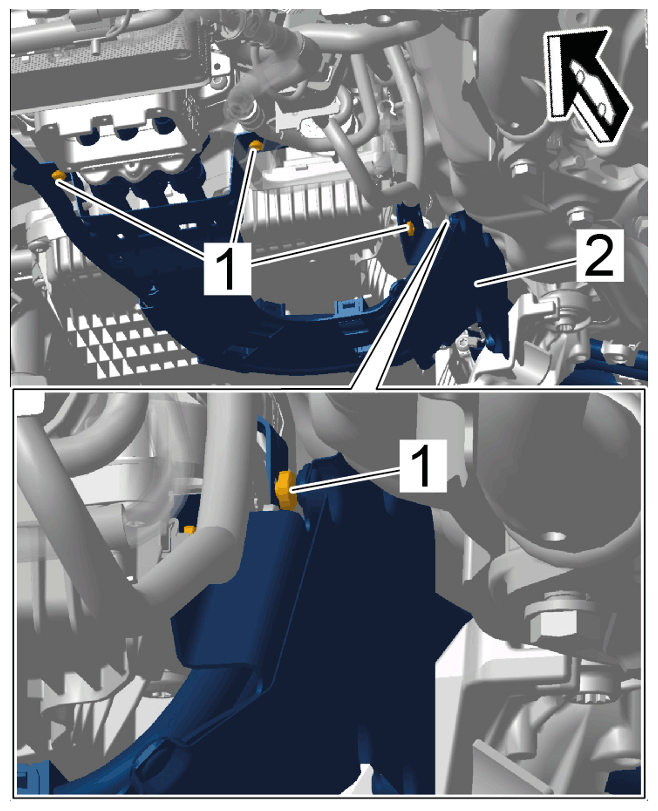

Fastening screws for cable duct for high-voltage line from power electronics to electric motor	Item 1	Tightening torque	9 Nm (6.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

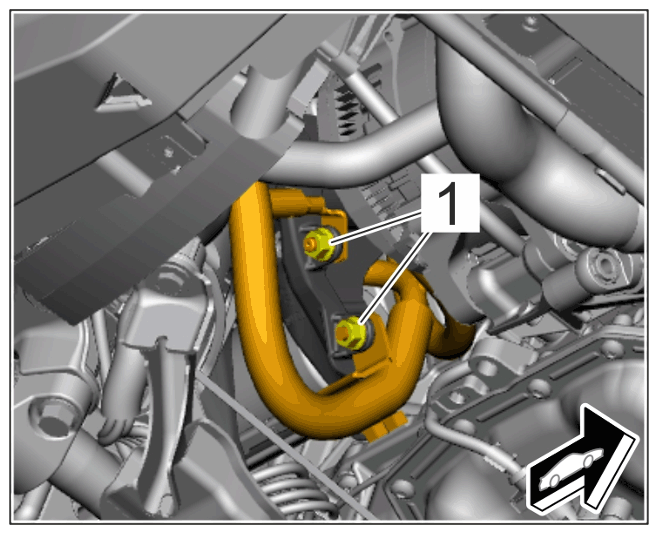

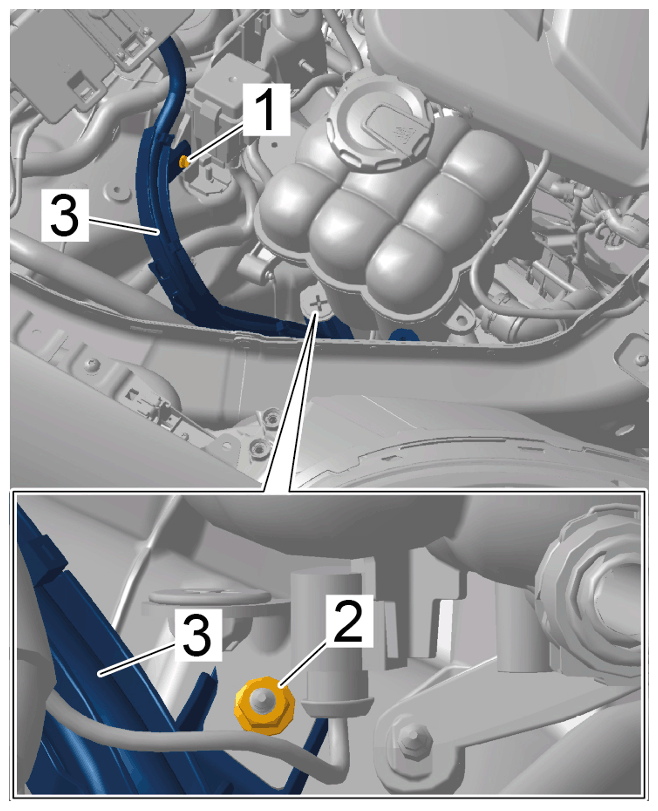

Line bracket fastening points	Item 2	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Fastening screw for line bracket	Item 1	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Fastening nut on external power connection	Item 2	Tightening torque	20 Nm (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. External power connection cover

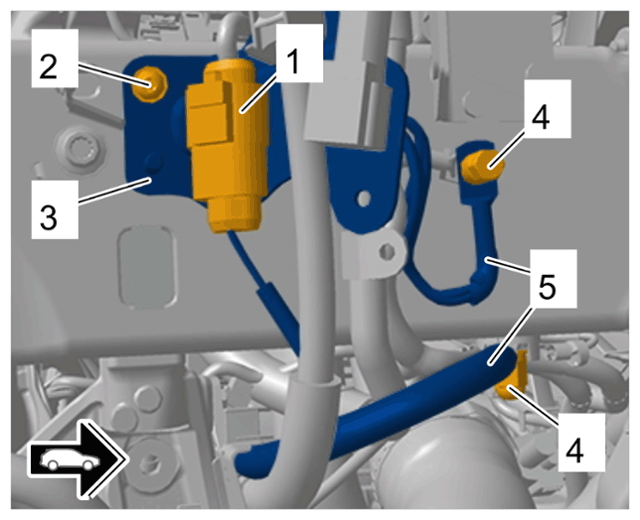

Ground line on engine carrier	Item 1	Tightening torque	20 Nm (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground line on engine carrier
Fastening screw for line bracket on longitudinal member	Item 2	Torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw for line bracket on longitudinal member

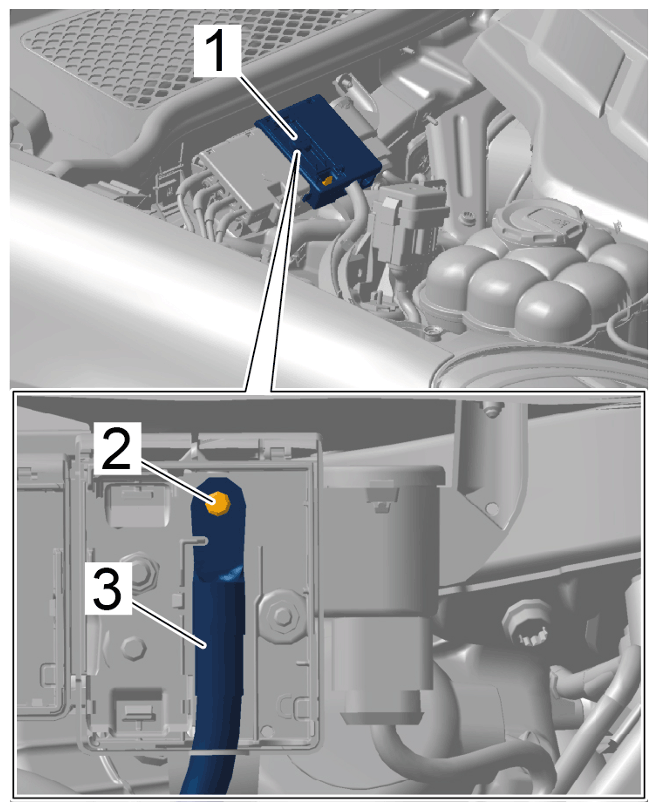

Fastening nut securing ground line to body	Item 4	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric plug connection
Screw-type clamp for pressure hose		Tightening torque	5.5 Nm (4.1 ftlb.)
Torque converter to drive plate	Screw, M10 x 1 x 15.5 - observe mounting specification!	Tightening torque	60 Nm (44 ftlb.)
Front axle carrier on front body	Item 2: M12 hexagon-head bolt x 1.5 x 90/Always replace screws following removal!	Initial tightening torque	115 Nm (84.8 ftlb.)
Front axle carrier on front body	Item 2: M12 hexagon head bolt x 1.5 x 90/Always replace bolts following removal!	Final tightening torque	+ 90°
Front axle carrier on rear body	Item 3: M14 hexagon-head bolt x 1.5 x 100/Always replace screws following removal!	Initial tightening torque	130 Nm (95.9 ftlb.)
Front axle carrier on rear body	Item 3: M14 hexagon head bolt x 1.5 x 100/Always replace bolts following removal!	Final tightening torque	+ 180°
Longitudinal member on front axle carrier	Item 2 and 6: M6 hexagon-head bolt x 20	Tightening torque	10 Nm (7.4 ftlb.)
Slide of longitudinal member	Item 3: M8 hexagon-head bolt x 75	Tightening torque	25 Nm (18.4 ftlb.)
Heat insulation on front axle carrier	Hexagon-head bolt M6 x 16	Tightening torque	9 Nm (6.6 ftlb.)
Heat insulation to longitudinal chassis beam	Hex bolt M6 x 12/applies to one-piece heat insulation.	Tightening torque	9 Nm (6.5 ftlb.) (6.6 ftlb.)
Heat insulation (upper part) to heat insulation (lower part)	M6 hex bolt x 20/applies to two-piece heat insulation!	Tightening torque	9 Nm (6.5 ftlb.) (6.6 ftlb.)
Heat insulation (upper part) to longitudinal chassis beam	M6 hex bolt x 20/applies to two-piece heat insulation!	Tightening torque	9 Nm (6.5 ftlb.) (6.6 ftlb.)
Upper trailing arm to wheel bearing housing	Hexagon-head bolt, M10 x 130 and hexagon nut	Tightening torque	40 Nm (30 ftlb.)
Spring strut fork to lower trailing arm	Hexagon-head bolt, M12 x 85 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	90 Nm (67 ftlb.)
Spring strut fork to lower trailing arm	Hexagon-head bolt, M12 x 85 and hexagon nut/always replace bolts and nuts following removal!	Final tightening	+ 90°
Anti-roll bar to connecting link (conventional)	Hexagon-head bolt, M10 x 62 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	40 Nm (30 ftlb.)
Anti-roll bar to connecting link (conventional)	Hexagon-head bolt, M10 x 62 and hexagon nut/always replace bolts and nuts following removal!	Final tightening	+ 90°
Anti-roll bar to connecting link (PDCC)	12 point socket, M12 x 65 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	60 Nm (44 ftlb.)
Anti-roll bar to connecting link (PDCC)	12 point socket, M12 x 65 and hexagon nut/always replace bolts and nuts following removal!	Final tightening	+ 90°

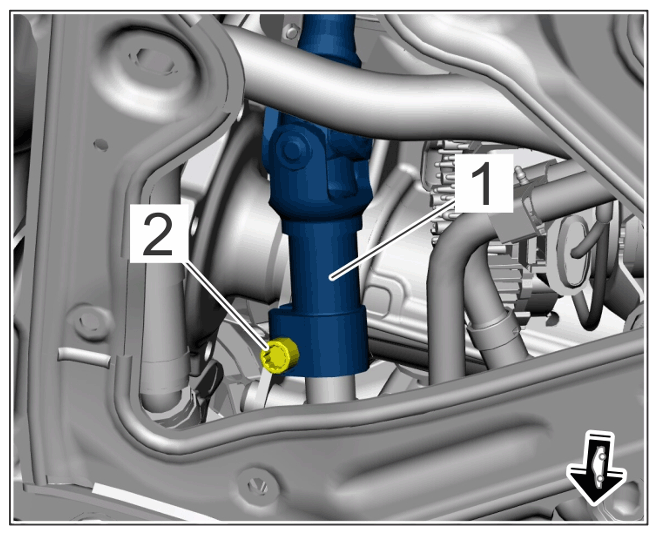

steering column lower part on power steering (universal joint)	Item 2: Internal multitooth screw M8 x 30/Always replace screw following removal!	Initial tightening	20 Nm (14.8 ftlb.)
Steering column lower part to power steering (universal joint)	Item 2: Internal multitooth screw M8 x 30/replace screw after every removal!	Final tightening	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Universal joint for power-steering/steering column lower part

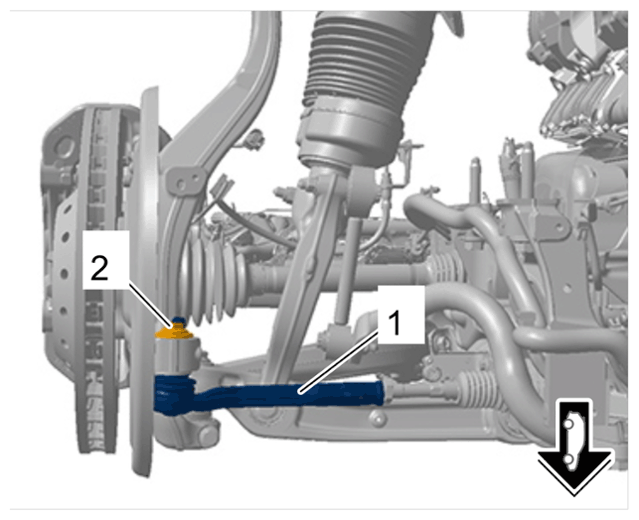

Tie-rod ball to wheel bearing housing	Item 2: Hexagon nut M14 x 1.5/Always replace nut following removal!	Tightening torque	140 Nm (103.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for tie rod on wheel bearing housing
Oil cooler to transmission	Screw, M6 x 18	Tightening torque	8 Nm (6 ftlb.)
