Remove Boost Pressure Control Cycle Valve

WARNING: This page is about a different variant/trim than selected.
  1. Pull carbon canister valve -1-  off the -2-  holder and set line -3-  a side.

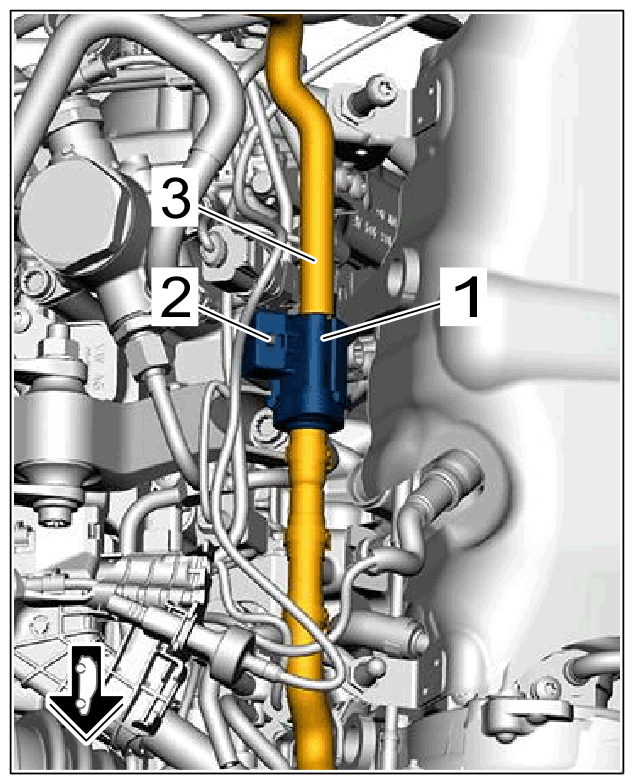

    G15258268Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Carbon canister valve

  2. Remove boost pressure control cycle valve -1-  .

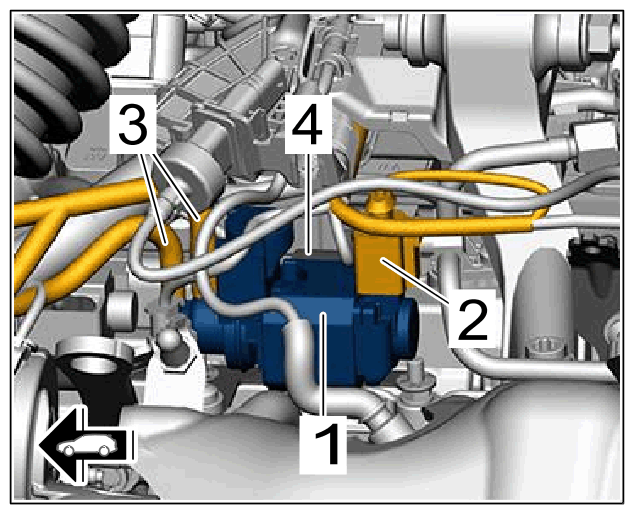

    G15258269Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Boost pressure control cycle valve

    1. 2.1  Release and disconnect electric plug connection -2-  .
    2. 2.2  Pull off vacuum hoses -3-  .
    3. 2.3  Pull boost pressure control cycle valve -1-  off the holder -4-  .
