Removing Pressure Sensor (On Left And Right Pressure Pipe)

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    • → Let hot components cool down.
    • → Wear personal protective gear.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Remove pressure sensor -1-  .

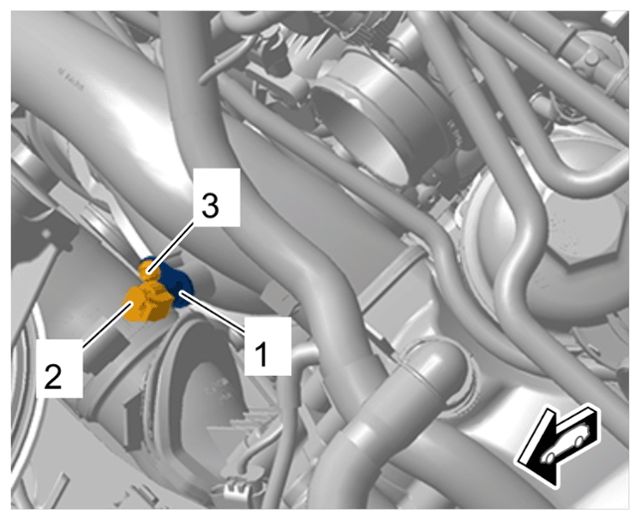

    G15258265Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure sensor (on right pressure pipe)

    1. 1.1  Unlock and disconnect electric plug connection -2-  .
    2. 1.2  Unscrew screw -3-  and remove pressure sensor -1-  .
