Removing Pressure Sensor (On Centre Pressure Pipe)

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    • → Let hot components cool down.
    • → Wear personal protective gear.
  1. Remove pressure sensor -1-  .

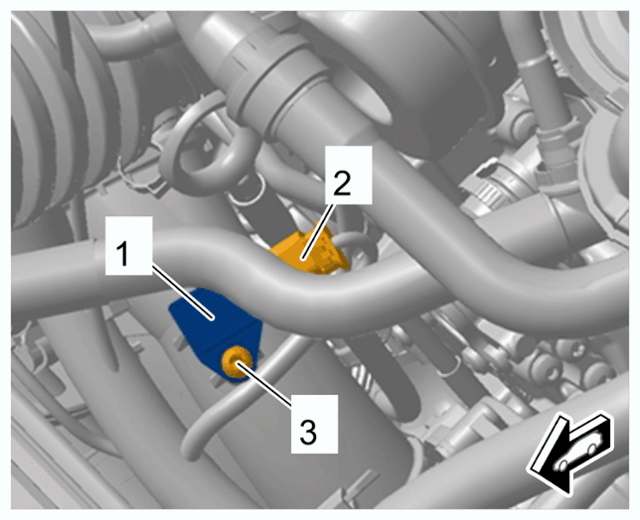

    G15258266Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure sensor (on centre pressure pipe)

    1. 1.1  Release and disconnect electric plug connection -2-  .
    2. 1.2  Unscrew screw -3-  and remove pressure sensor -1-  .
