Adjusting Bypass Flap Control Box
WARNING: This page is about a different variant/trim than selected.

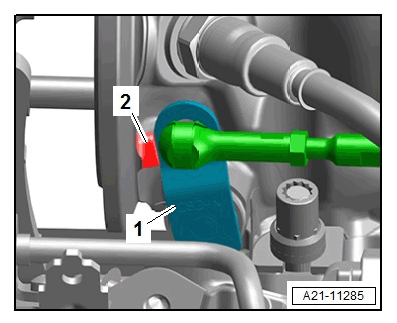

- Adjust the control rod in such a way that the actuating lever -1-
is at the stop -2-
.
Actuating lever at stop
- From this position, turn the threaded piece -2-
by 1.5 turns anti-clockwise.
This makes the control rod longer.

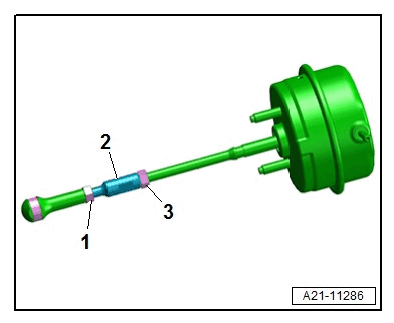

- 2.1 Tighten lock nuts -1 and 3- .
Lock nuts on control box

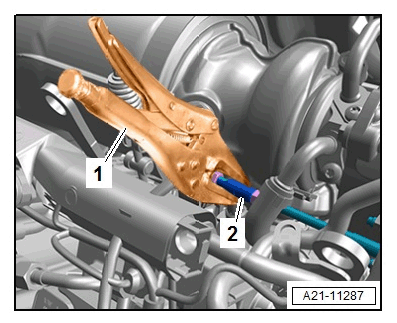

- Clamp a small clamping pliers -1-
on the shaft of the ball socket -2-
.
The clamping pliers serves as a stop for the dial gauge.
Clamping pliers on control rod
Information
The measurement setup is described for one side as an example.
- Prepare measurement setup.

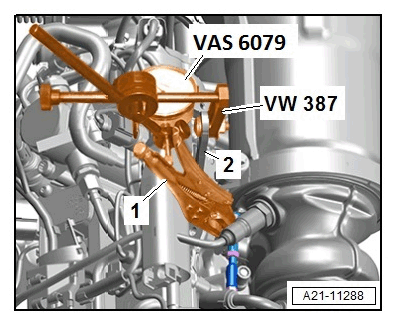

- 4.1 >VW387 - Universal dial gauge bracket must be secured to the engine transport eyebolt -2- .
- 4.2 Align the >VAS 6079 - Dial gauge in the >VW387 - universal dial gauge bracket in such a way that the measuring sensor is positioned as parallel as possible to the pressure unit and the measuring sensor is touching the clamping pliers -1- .
- 4.3 Set the dial gauge to "0" with a preload of about 20 mm.
Measurement setup
- Adjust control box for bypass flap.

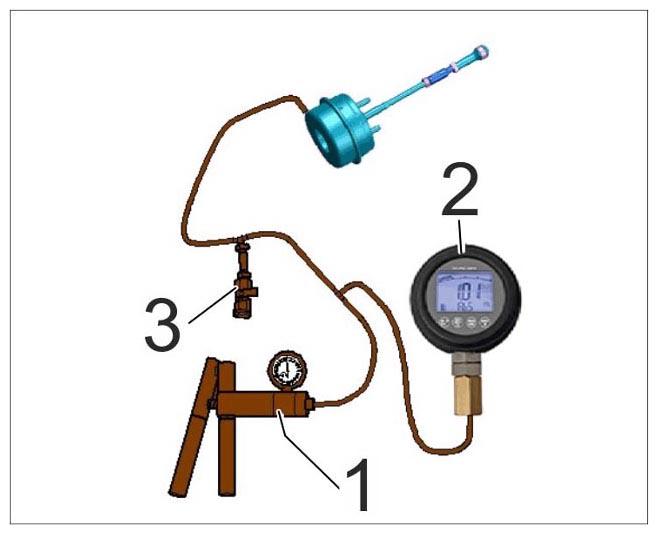

- 5.1 Set >VAS 6213 - hand vacuum pump-1- to vacuum .
- 5.2 Switch on >V.A.G 1397B - pressure sensor-2- and set it to relative pressure .
- 5.3 Connect >VAS 6342 - pressure control valve-3- to the vacuum connection of the control box.
- 5.4 Create a vacuum of at least 300 mbar on the control box.
- 5.5
Reduce the vacuum to 200 mbar using the >VAS 6342 - pressure control valve-3-
.
Control lever starts to move.
- 5.6
Reduce the vacuum further to 170 - 230 mbar
and read off the adjustment range on the dial gauge.
> Setpoint value 8 mm +/- 1 mm
- 5.7
Reduce the vacuum further to 100 - 170 mbar
and read off the adjustment range on the dial gauge.
> Setpoint value 3 mm +/- 1 mm
- 5.8 If necessary, set the adjustment range at the control rod with the dial gauge fitted and repeat the measurement process.
Vacuum pump and pressure sensor (diagram)
- Tighten lock nuts -1 and 3-
.
> Tightening torque 8 Nm (6 ftlb.)
Lock nuts on control box

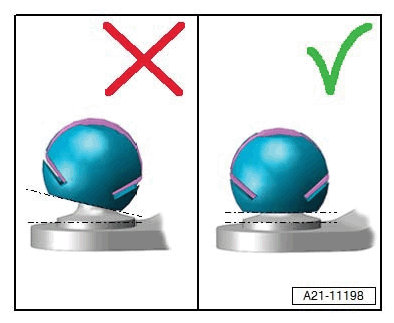

- Check that the ball socket is parallel to the actuating lever.
Aligning the ball socket
- Remove all tools.
- Attach vacuum hose to the control box.
