Removing Cooling-Air Flaps For Charge-Air Cooler

WARNING: This page is about a different variant/trim than selected.
  1. Remove cooling-air flaps for charge-air cooler -1-  .

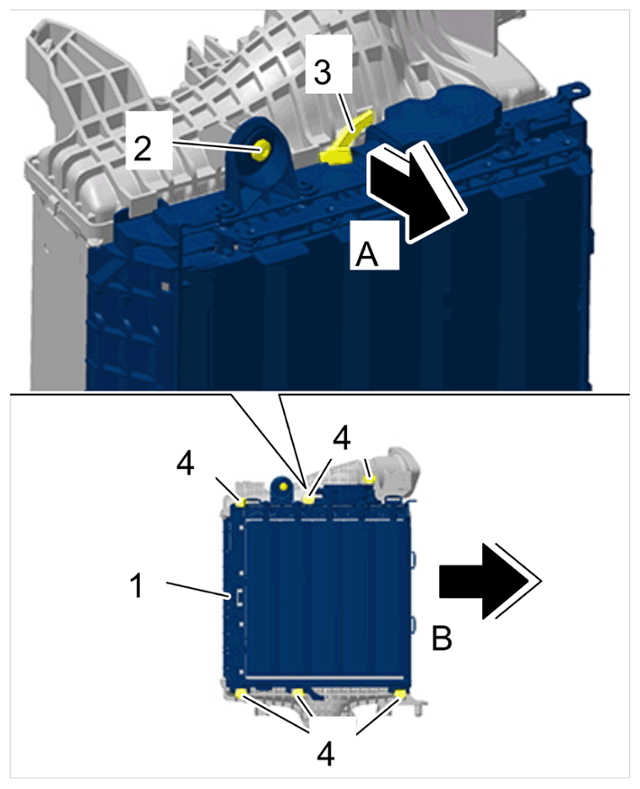

    G15258247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cooling-air flaps on charge-air cooler

    1. 1.1  Loosen and unscrew screw -2-  .
    2. 1.2  Carefully press fastening part -3-  in -direction of arrow A-  using a plastic wedge and guide cooling air flaps for charge-air cooler -1-  in -direction of arrow B-  out of the retaining lugs -4-  .
