Removing Pressure Pipe

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

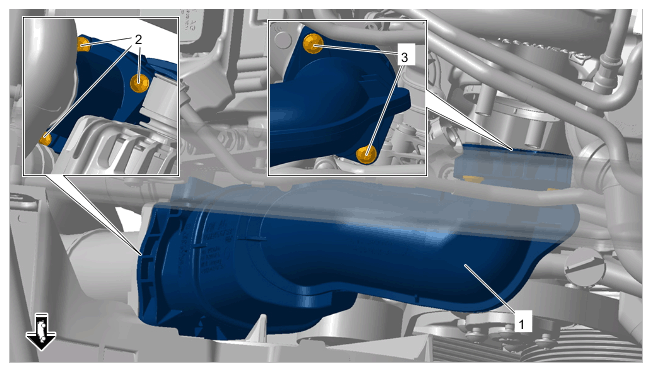

1. Remove pressure pipe -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pressure pipe (at turbocharger)

   1. 1.1  Unscrew screws -2-  at the charge-air cooler flange.
   2. 1.2  Unscrew screws -3-  at the turbocharger flange.
   3. 1.3  Remove pressure pipe -1-  .
   4. 1.4  Replace seals if damaged.
