Installing Pressure Pipe
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following:
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

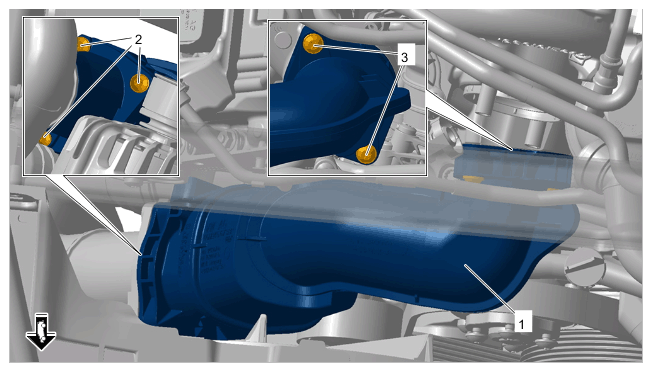

Pressure pipe (at the turbocharger)
- 1.1
Tighten screws -3-
on turbocharger flange.
> Tightening torque 8 Nm (6 ftlb.)
- 1.2
Tighten screws -2-
on charge-air cooler flange.
> Tightening torque 8 Nm (6 ftlb.)
