Removing Recirculating Air Valve

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    • → Let hot components cool down.
    • → Wear personal protective gear.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Only for left cylinder bank:

    Pull out oil dipstick.

  2. Remove recirculating air valve -1-  .

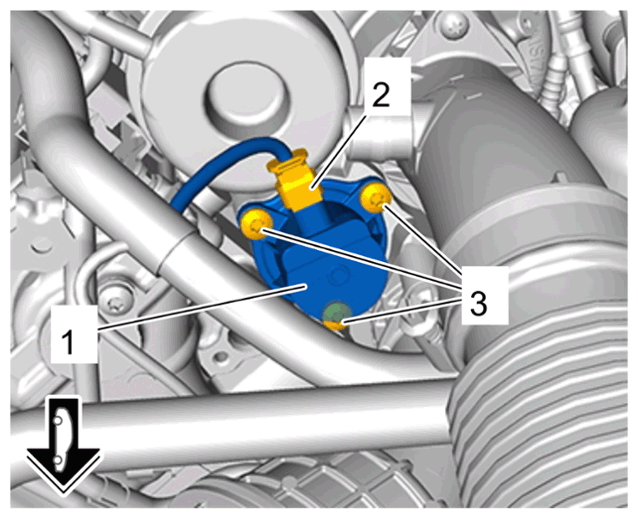

    G15258235Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Recirculating air valve

    1. 2.1  Release and disconnect electric plug connection -2-  .
    2. 2.2  Unscrew screws -3-  and remove recirculating air valve -1-  .
