Installing Recirculating Air Valve

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

1. Install recirculating air valve -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

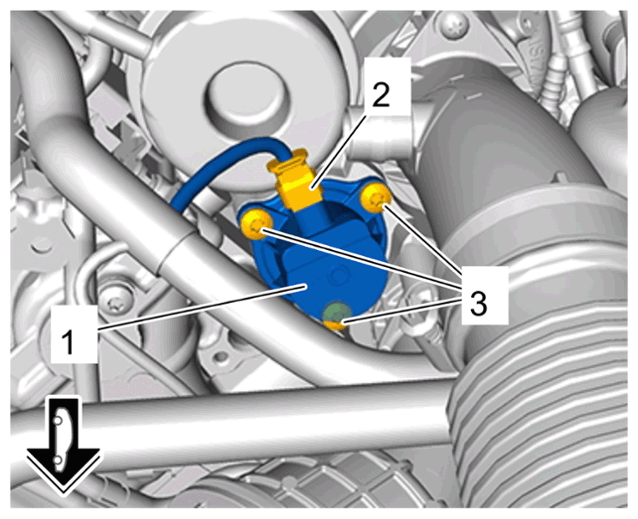

   Recirculating air valve

   1. 1.1  Insert recirculating air valve -1-  .
   2. 1.2  Screw in and tighten screws for recirculating air valve -3-  .

      > Tightening torque 9 Nm (6.5 ftlb.)

   3. 1.3  Connect and lock electric plug connection for recirculating air valve -2-  .
2. Only for left cylinder bank:

   Insert oil dipstick.
