Remove Moulded Hose (Top)

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    • → Let hot components cool down.
    • → Wear personal protective gear.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

Information

The pictures shown in this document may differ from the original.

  1. Remove moulded hose -1-  .

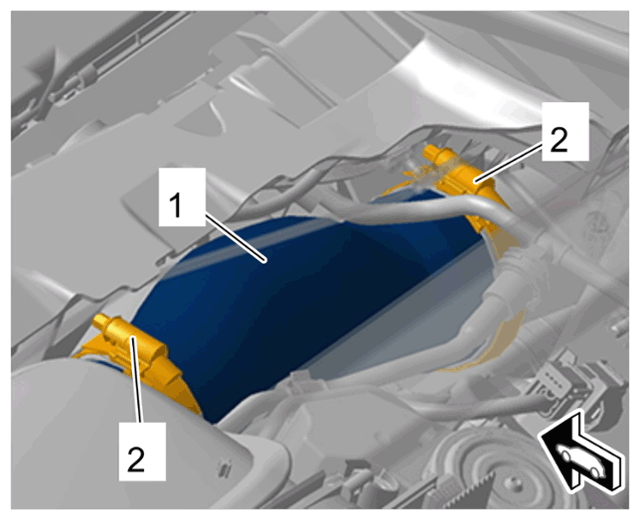

    G15258232Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Moulded hose, top (shown at the right (V6 biturbo only))

    1. 1.1  Loosen screw-type clamps -2-  .
    2. 1.2  Disconnect and remove moulded hose -1-  .
    3. 1.3  Close off openings using suitable stoppers.
