Remove Moulded Hose (Bottom)

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    • → Let hot components cool down.
    • → Wear personal protective gear.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Remove moulded hose -1-  .

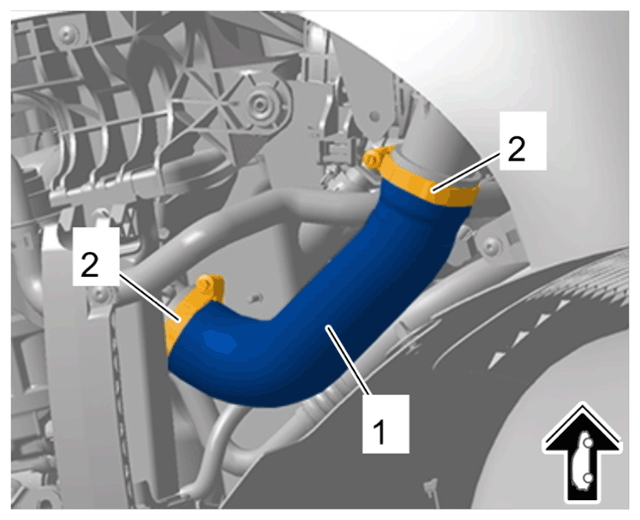

    G15258231Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Moulded hose, bottom

    1. 1.1  Loosen screw-type clamps -2-  .
    2. 1.2  Disconnect and remove moulded hose -1-  .
    3. 1.3  Close off openings using suitable stoppers.
