Preliminary Work

WARNING: This page is about a different variant/trim than selected.

For moulded hoses at the bottom:

Removing front underbody cover

> WM, 519219 REMOVING AND INSTALLING COVER FOR FRONT UNDERBODY

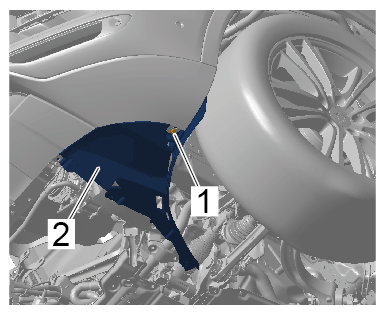

Remove air duct for brake -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air duct for brake

For moulded hoses on top:

Remove relevant air box for air cleaner.

> 242719 REMOVING AND INSTALLING AIR BOX FOR AIR CLEANER

Removing air cleaner housing.

> 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING

Remove intermediate piece.

> WM, 505219 REMOVING AND INSTALLING INTERMEDIATE PIECE
