Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install suction hoses -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

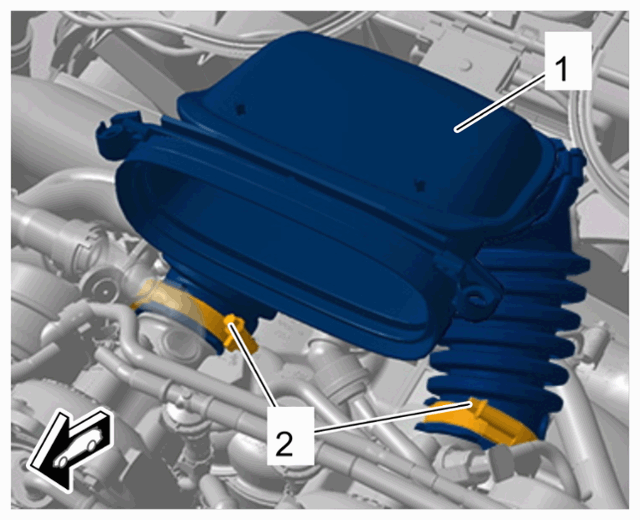

Suction hoses
1. 1.1 Position suction hoses -1- and tighten screw-type clamps -2- .
  > Tightening torque 3.5 Nm (2.5 ftlb.)
Install intermediate piece.
> WM, 505219 REMOVING AND INSTALLING INTERMEDIATE PIECE
Install air cleaner housing.
> 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING
