Removing Right Intake Pipe
WARNING: This page is about a different variant/trim than selected.
- Remove right intake pipe -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

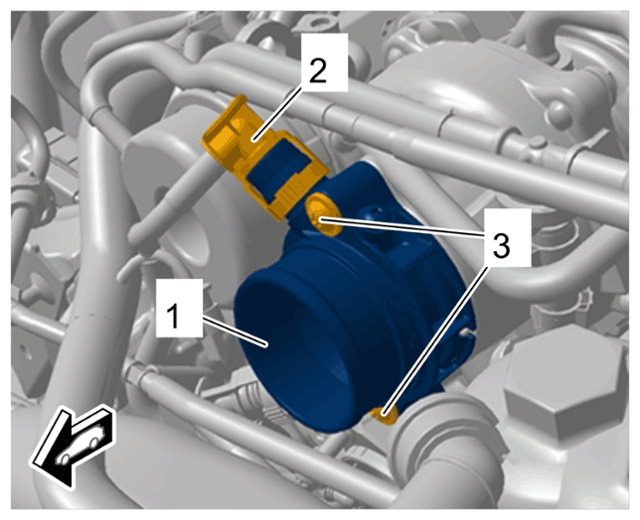

Intake pipe on right cylinder bank
- 1.1
Release vent line -2-
and pull it off the intake pipe -1-
.
- 1.2
Unscrew screws -3-
and remove intake pipe -1-
.
