Removing Left Intake Pipe
WARNING: This page is about a different variant/trim than selected.
- Remove left intake pipe -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

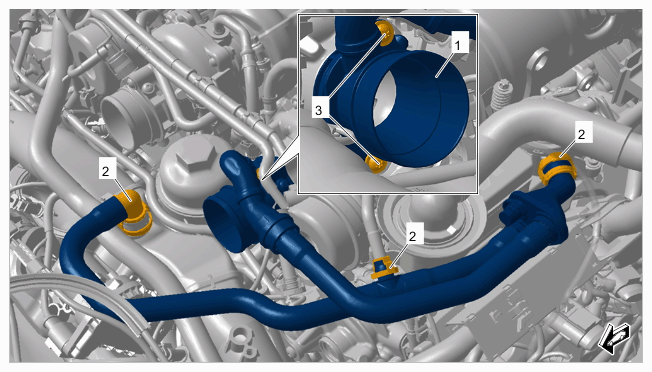

Left intake pipe with positive crankcase ventilation
- 1.1
Release and disconnect positive crankcase ventilation connections -2-
.
- 1.2
Unscrew screws -3-
and remove intake pipe -1-
together with positive crankcase ventilation.
