Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove air cleaner housing.

    > 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING

  2. Remove intermediate piece.

    > WM, 505219 REMOVING AND INSTALLING INTERMEDIATE PIECE

  3. Remove suction hoses -1-  .

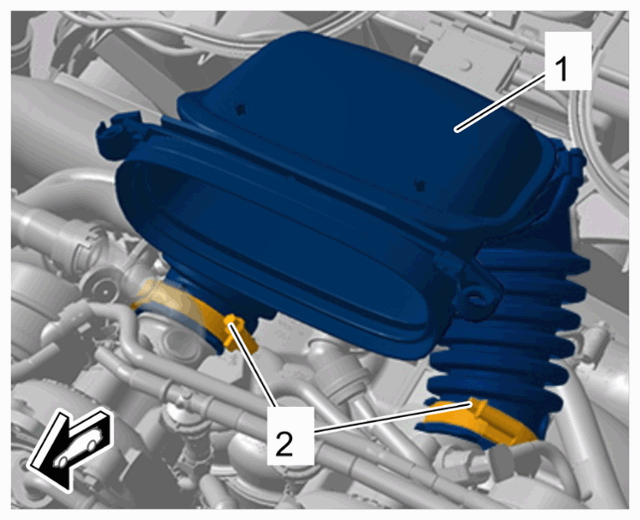

    G15258217Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Suction hoses

    1. 3.1  Loosen screw-type clamps -2-  and pull suction hoses -1-  off the intake pipes.
