Removing Front Air Guide At The Side (Ahead Of Charge-Air Cooler)

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

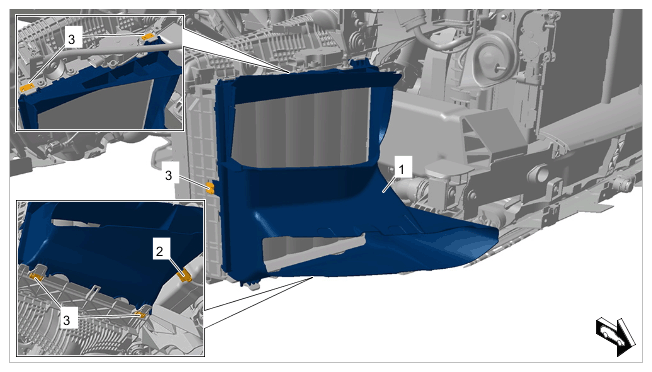

Remove front air guide at the side (ahead of charge-air cooler) -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front air guide at the side (ahead of charge-air cooler)
1. 1.1 Release and disconnect electric plug connection -2- ; this is only on the right-hand side of the vehicle.
2. 1.2 Release retaining lugs -3- and pull front air guide at the side (ahead of charge-air cooler) -1- forward off the charge-air cooler.
