Removing Oxygen Sensor Downstream Of Catalytic Converter (Cylinder Bank 2)

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.

Expose electric line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

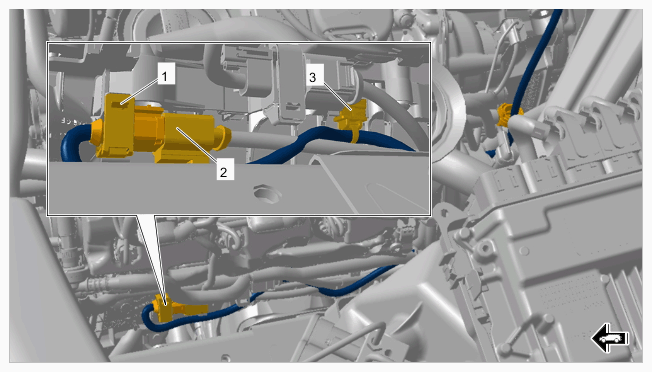

Electric line for oxygen sensor downstream of catalytic converter (cylinder bank 2)
1. 1.1 Open bracket -1- and unclip electric plug connection -2- .
2. 1.2 Release and disconnect electric plug connection -2- .
3. 1.3 Unclip clip -3- .
Information

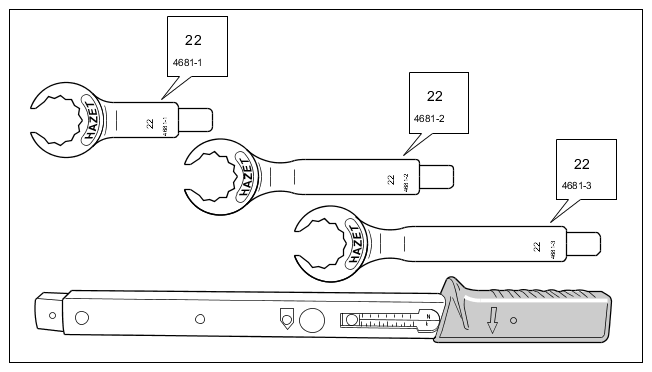

The >3337 - ring wrench set for oxygen sensor is the ideal tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oxygen sensor tool
Remove oxygen sensor downstream of catalytic converter (cylinder bank 2) -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

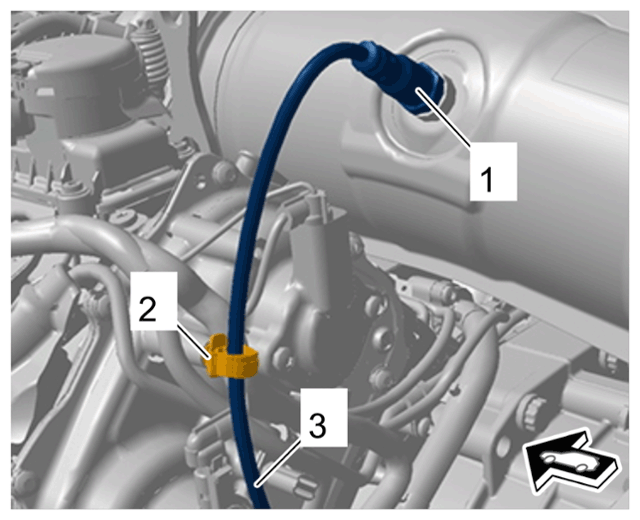

Oxygen sensor downstream of catalytic converter (cylinder bank 2)
1. 2.1 Unclip clip -2- .
2. 2.2 Guide electric line -3- up towards oxygen sensor downstream of catalytic converter (cylinder bank 2) -1- .
3. 2.3 Unscrew oxygen sensor downstream of catalytic converter (cylinder bank 2) -1- .
