Removing High-Pressure Pump
WARNING: This page is about a different variant/trim than selected.
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
- → Avoid contact with hot parts or sources of ignition.
- → Use suction to remove ignitable vapors.
- → Attach warning sign in a clearly visible position.
- → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
- → Secure collection containers/vessels to prevent them from tipping over.
WARNING:
Toxic substances
- Danger of poisoning or suffocation
- Danger of burns to the eyes and skin
- → Ventilate the work area well.
- → Never ingest or inhale.
- → Read specific information on the Hazard Sheet.
- → Wear personal protective gear.
- → Do not smoke, eat or drink in the work area.
NOTIFICATION
Fuel system is still pressurized
- Risk of eye injuries
- → Wear personal protective gear.
- → Place a cloth around the joint.
- → Release pressure by carefully pulling off lines and hoses.
Information
- Soak up emerging fuel using suitable binding material or cloths.
- Dispose of fuel-soaked cloths according to applicable national laws.
- The fuel system must be depressurized.
- Only work on the fuel system in well-ventilated rooms.
- Always replace removed seals.
- Do not use any sealant containing silicone or silicone spray when the injection system is open. Traces of silicone drawn in by the engine are not combusted and damage the oxygen sensors.
Information
The rules relating to cleanliness and instructions for working on the fuel system must always be observed before and during the work.
> 2X00IN RULES RELATING TO CLEANLINESS AND INSTRUCTIONS FOR WORKING ON THE FUEL SYSTEM
> 2X00IN BASIC SAFETY INSTRUCTIONS FOR WORKING WITH THE FUEL SYSTEM
Information
- Close off open connections and lines using suitable stoppers or caps.

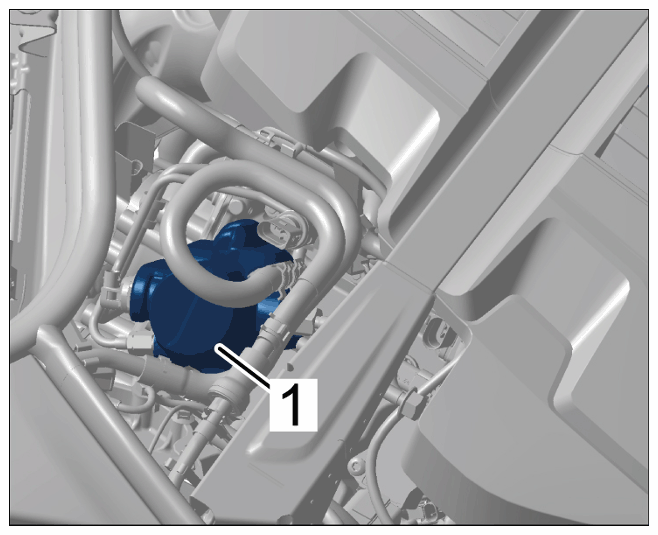

- Remove sound absorber on high-pressure pump -1-
.
Sound absorber for high-pressure pump

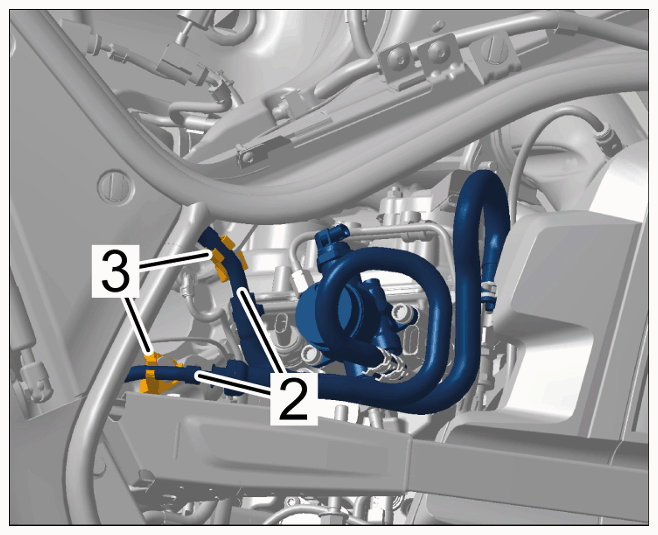

- Unclip lines -2-
from holder -3-
and push them aside.
High-pressure pump lines

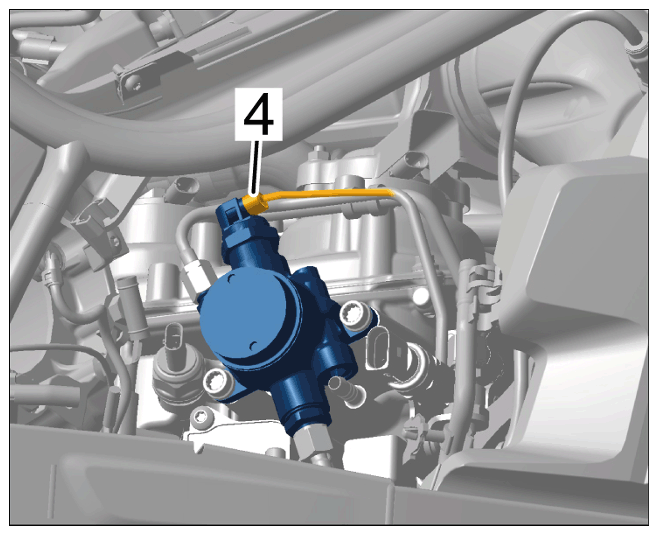

- Release and disconnect electric plug connection -4-
.
Electric plug connection for high-pressure pump

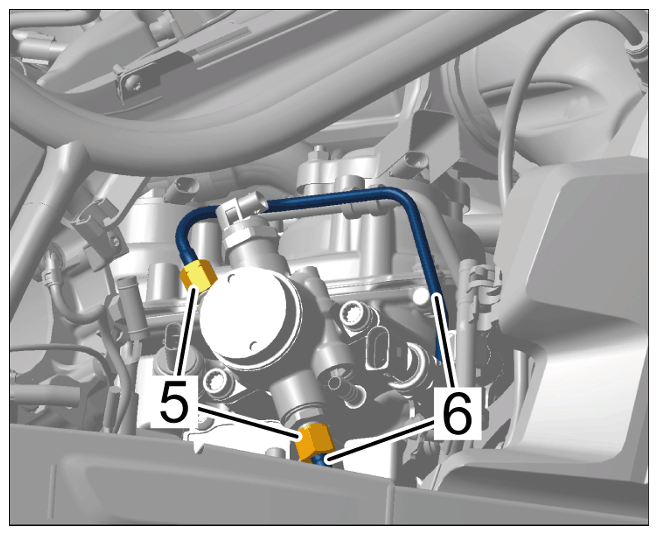

- Unscrew union nuts -5-
and remove fuel lines -6-
.
Fuel lines (high-pressure)

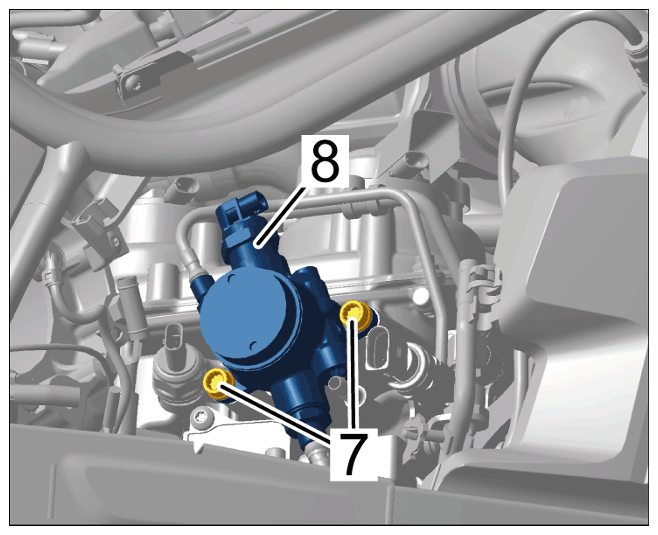

- Unscrew screws -7-
and remove high-pressure pump -8-
.
Screws on high-pressure pump
- Remove roller tappet from cylinder head.
