Remove Central Intake Distributor

WARNING: This page is about a different variant/trim than selected.

Have suitable stoppers ready for closing off the line connections.

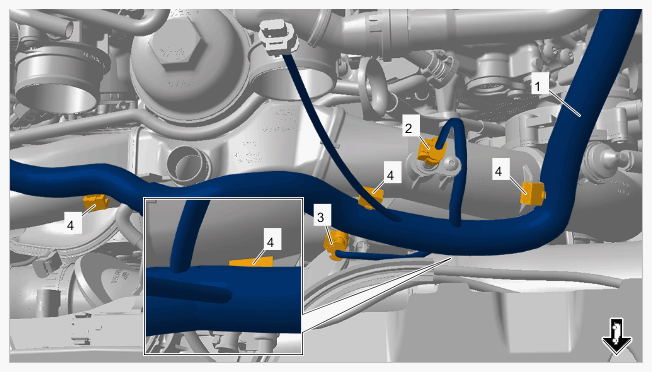

Disconnect electric wiring harness -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wiring harness
1. 2.1 Release and disconnect electric plug connections -2 and 3- .
2. 2.2 Undo clips -4- .
3. 2.3 Move electric wire harness -1- aside.

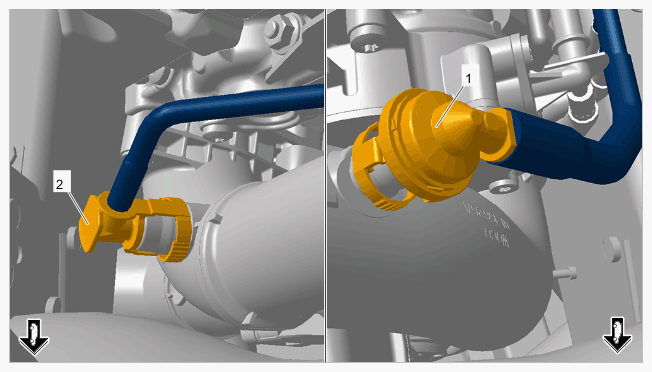

Disconnect line connections -1 and 2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line connections
1. 3.1 Release and disconnect left line connection -1- .
2. 3.2 Release and disconnect right line connection -2- .
3. 3.3 Close off line connections using suitable stoppers.

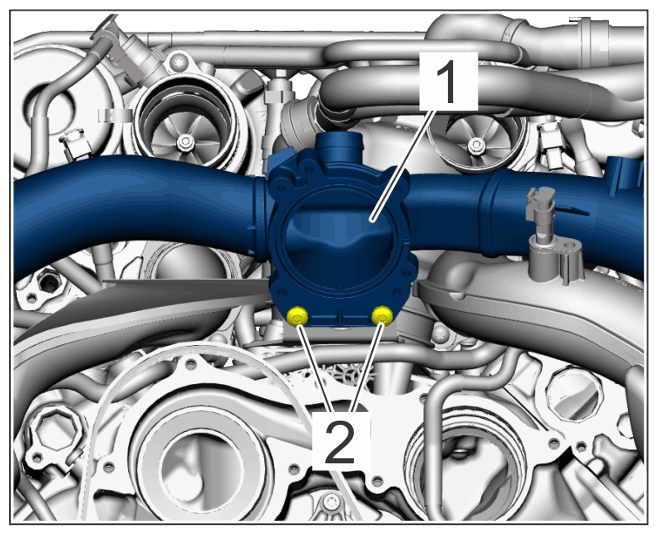

Loosen centre intake distributor -1- at the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre intake distributor on holder
1. 4.1 Unscrew screws -2- .

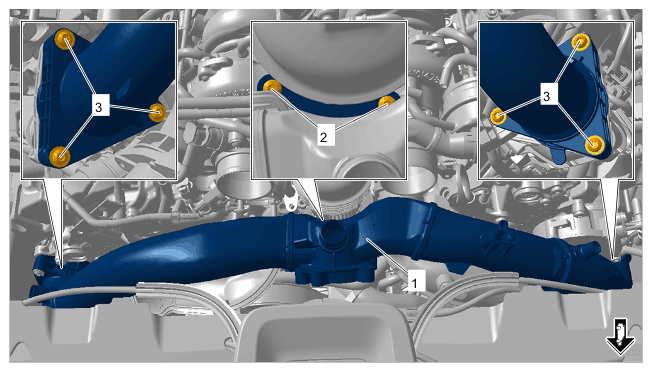

Remove centre intake distributor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre intake distributor
1. 5.1 Unscrew screws on centre intake distributor -3- .
2. 5.2 Guide centre intake distributor -1- up out of the engine compartment.
