Cleaning Throttle Housing
WARNING: This page is about a different variant/trim than selected.
WARNING:
Toxic substances
- Danger of poisoning or suffocation
- Danger of burns to the eyes and skin
- → Ventilate the work area well.
- → Never ingest or inhale.
- → Read specific information on the Hazard Sheet.
- → Wear personal protective gear.
- → Do not smoke, eat or drink in the work area.
NOTIFICATION
Inflammable materials in intake-air distributor
- Risk of engine damage
- → Do not insert inflammable materials into the intake-air distributor.
- → Remove residues and deposits completely.
- Check that the throttle valve housing >Cleaning throttle housing
is not contaminated by combustion residues or oil residues.
Information
Soak cloth with solvent naphtha or fuel if necessary.
- If the throttle valve is contaminated:

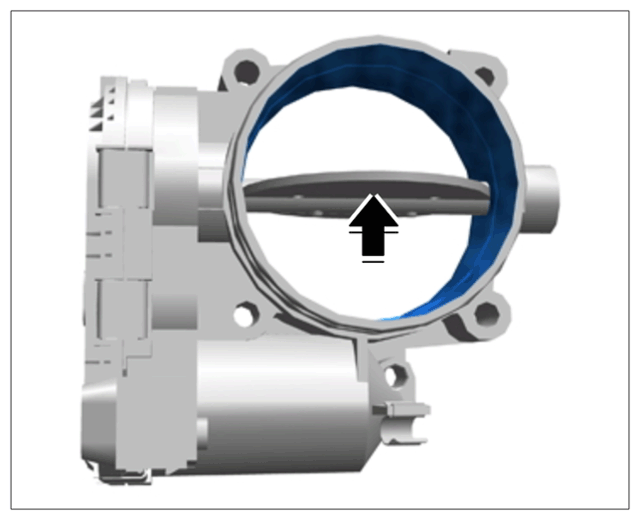

Carefully open the throttle valve with your finger -Arrow- and remove combustion residues or oil residues using a clean, lint-free cloth.
Cleaning throttle housing
