Removing Throttle Housing
WARNING: This page is about a different variant/trim than selected.

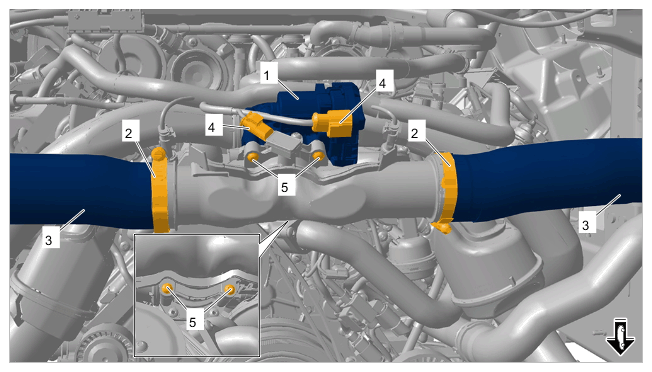

- Remove throttle housing -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Throttle housing
- 1.1
Loosen screw-type clamps -2-
and pull pressure hoses -3-
off the intake plenum.
- 1.2
Release and disconnect electric plug connections -4-
.
- 1.3
Unscrew screws -5-
and remove throttle housing -1-
together with intake plenum.
