Removing Trim Frame For Tailpipe Cover
WARNING: This page is about a different variant/trim than selected.
- Unscrew screw -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

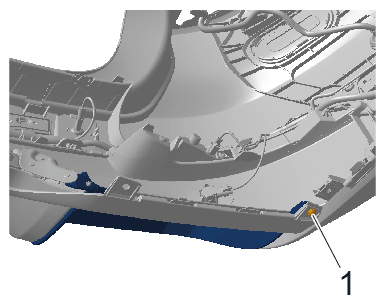

Screw on trim frame for tailpipe cover
- Removing trim frame for tailpipe cover -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

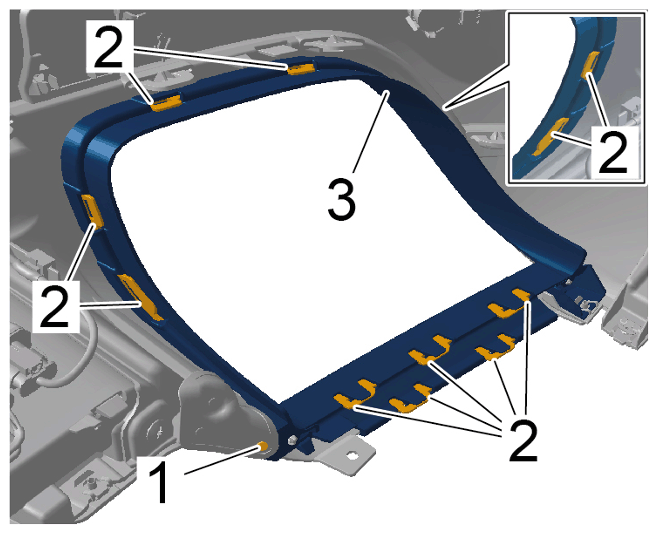

Trim frame for tailpipe cover
- 2.1
Drill out rivet -1-
on heat shield.
- 2.2
Release locking lugs -2-
and remove trim frame on tailpipe cover -3-
.
