Removing Rear Skirt

Information

• Some of the repair illustrations show only one side of the vehicle or a similar component.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

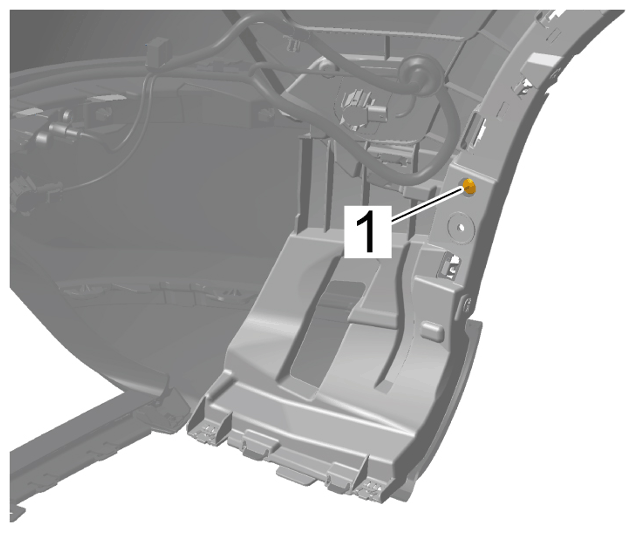

1. Remove expansion rivet -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Expansion rivet

2. Only for vehicles with Remote parking:

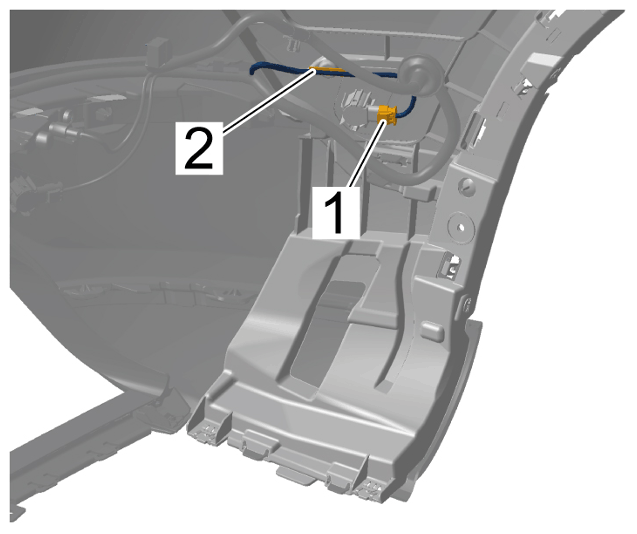

   Release and unplug electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for ParkAssist sensor

3. Unclip line bracket -2-  and move wire harness aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire harness for ParkAssist sensor

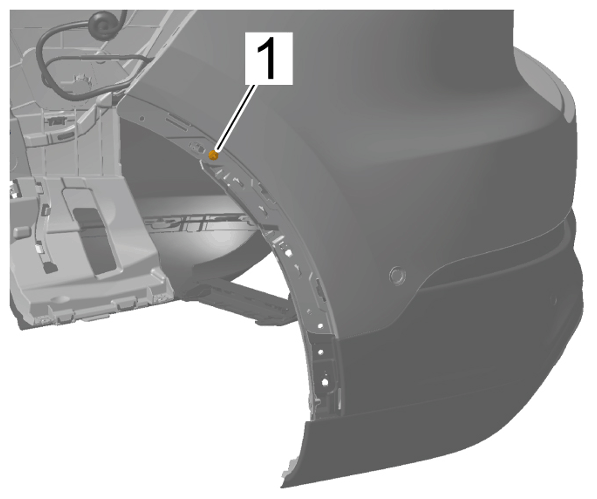

4. Remove expansion rivet -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Expansion rivet

   Information

   Carefully press reinforcement away. The upper section of the bonding area must not become detached.

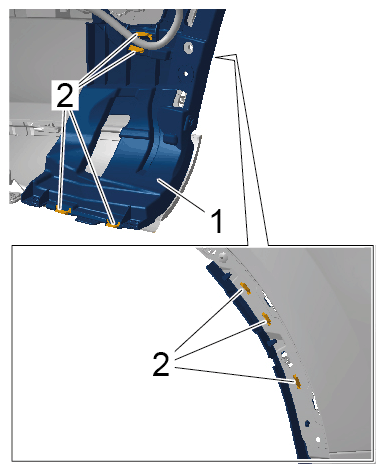

5. Release locking lugs -2-  and press reinforcement -1-  inwards until the locking lugs for the rear skirt underneath are accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Guide at the side of rear skirt

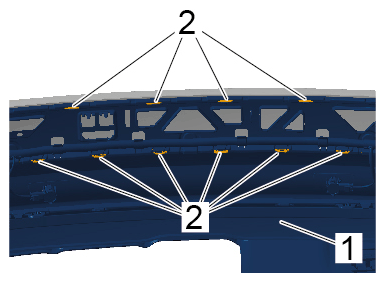

6. Release locking lugs -2-  all the way around and remove rear skirt -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Locking lugs for rear skirt
