Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Nuts for retaining strip on tail light	Item 1	Tightening torque	4 Nm (3 ftlb.)

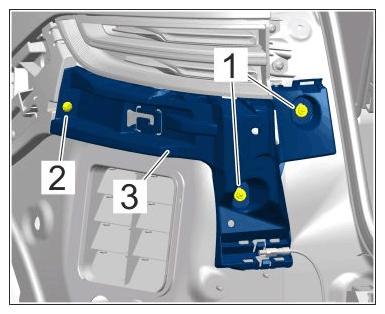

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Retaining strip on tail light
Screw for retaining strip on tail light	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Retaining strip on tail light
Nuts on retaining strip, centre	Item 1	Tightening torque	4 Nm (3 ftlb.)

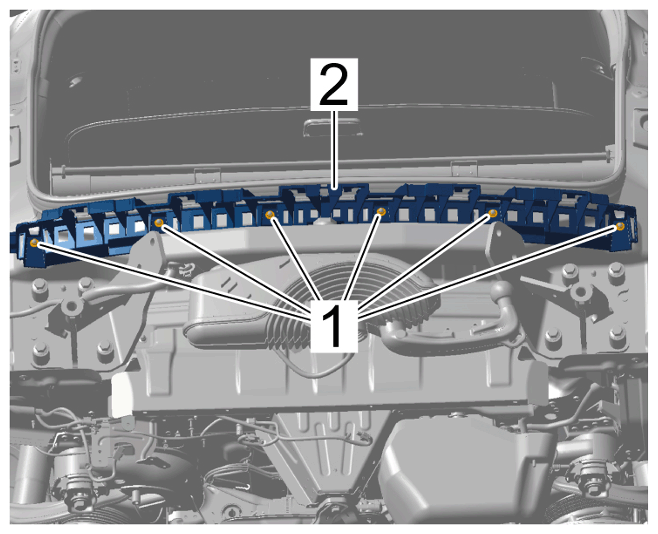

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

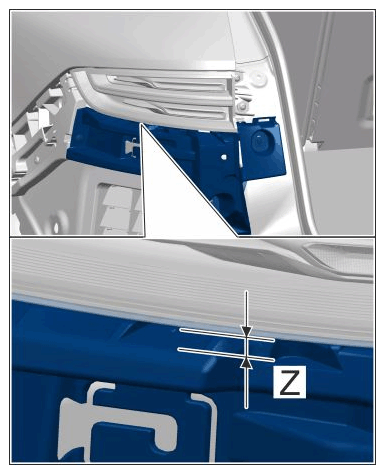

Retaining strip to tail light	Item Z	Gap dimension	8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap from retaining strip to tail light
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap from retaining strip to tail light

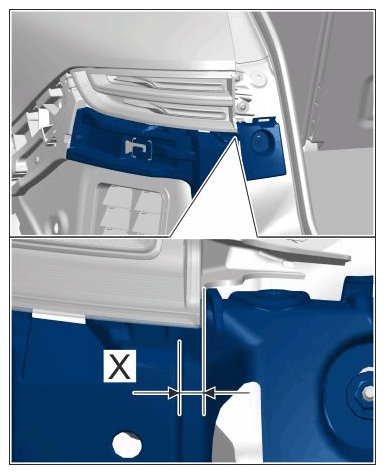

Retaining strip to tail light	Item X	Gap dimension	6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap from retaining strip to tail light
