Removing Centre Retaining Strip

WARNING: This page is about a different variant/trim than selected.

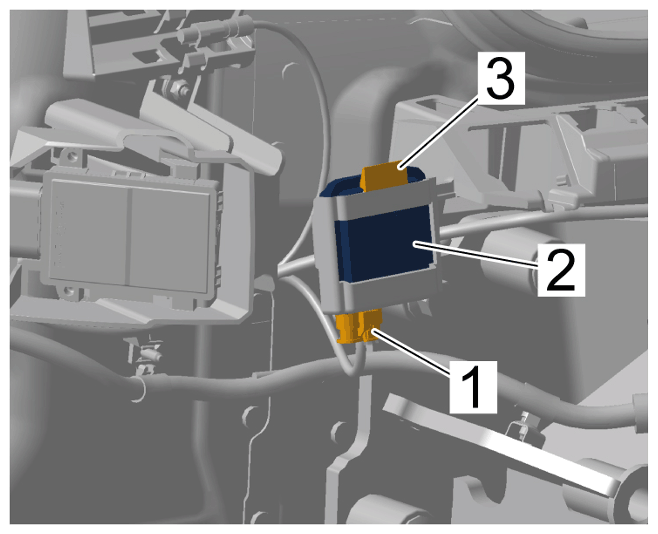

  1. Release and unplug electric plug connection -1-  .
    G15237273Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Unclip control unit for garage door opener -2- (-3-)  .
    G15237274Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control unit for garage door opener

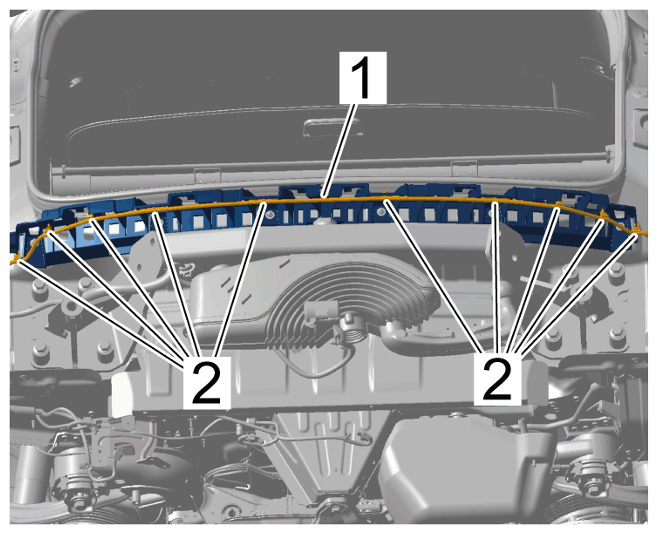

  3. Unclip wire harness -1- (-2-)  .
    G15237275Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness

  4. Screw off fastening nuts -1-  .
    G15237276Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening nuts

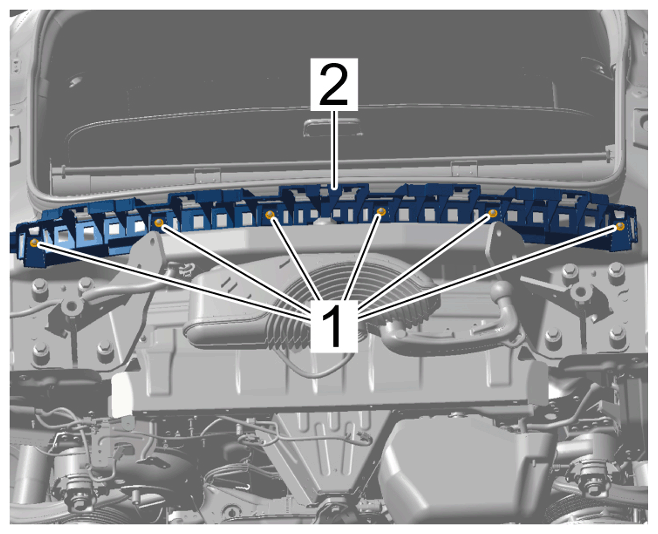

  5. Remove centre retaining strip -2-  .
    G15237277Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Centre retaining strip
