Installing Rear Retaining Strip

Information

• Carefully clean any dirt, grease, wax and other impurities off the fitting area of the body using isopropanol.
• Always use a clean cloth.
• The room and object temperature must be at least +18°C.
• Air humidity must be 40% - 60%.

1. Check anti-chafing film -1-  for damage and replace it if necessary -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

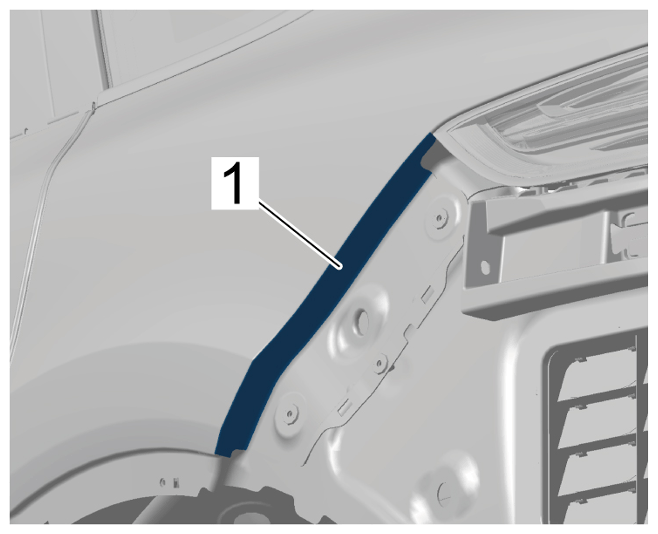

   Anti-chafing film

2. Installation is performed in reverse order.
3. Position retaining strip.
   1. 3.1  Align retaining strip using the gap dimensions shown. > Gap dimension 6 mm
      • > Gap dimension 8 mm
      • > Gap dimension 6 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

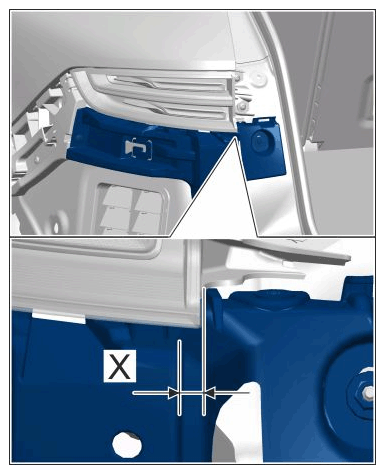

   Gap from retaining strip to tail light

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

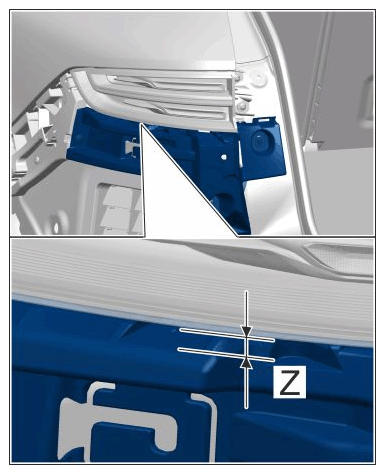

   Gap from retaining strip to tail light

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

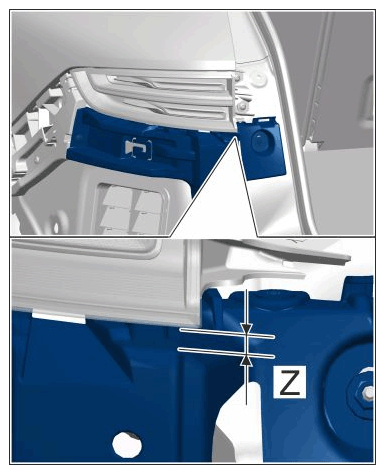

   Gap from retaining strip to tail light

4. Tighten fastening parts to the specified tightening torque:

   Screw on fastening nuts and tighten to > Tightening torque 4 Nm (3 ftlb.)  .

   Screw in fastening screws and tighten to > Tightening torque 2.5 Nm (1.75 ftlb.)  .

   Screw in fastening nuts and tighten to > Tightening torque 4 Nm (3 ftlb.)  .
