Removing Rear Panel (Moulding)

WARNING: This page is about a different variant/trim than selected.
  1. Remove rear panel.

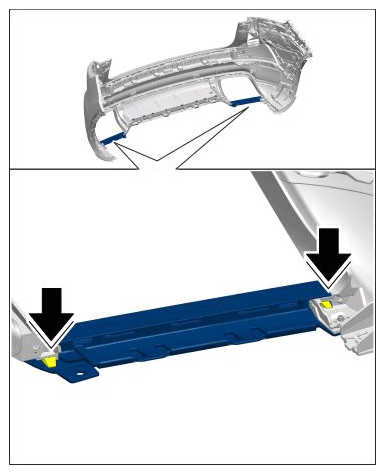

    1. 1.1  Release clip connections at the sides.
      G15237246Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Rear panel

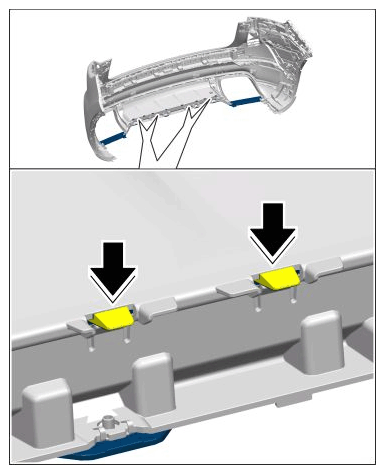

    2. 1.2  Release clip connections at the centre.
      G15237247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Rear panel

  2. Remove rear panel.
