Removing Rear Panel

Only for Powerlift tailgate with virtual pedal (I-no. 4E6).

1. Loosen sensor for rear lid opening function from rear panel.
   1. 1.1  Release and disconnect electric plug connection -1-  on control unit for virtual pedal (VIP).

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connection

   2. 1.2  Unclip line bracket -2-  from rear panel.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Wire harness on rear panel

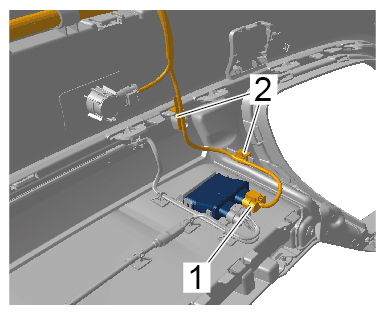

   3. 1.3  Release and disconnect electric plug connection -1-  on control unit for virtual pedal (VIP).

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connection for control unit for virtual pedal (VIP)

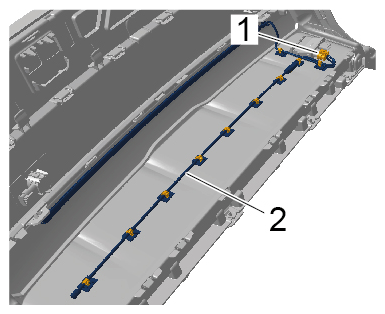

   4. 1.4  Cut tie-wrap on sensor and wire harness -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Control unit wire harness

   5. 1.5  Secure control unit for virtual pedal (VIP) on rear apron with adhesive tape.

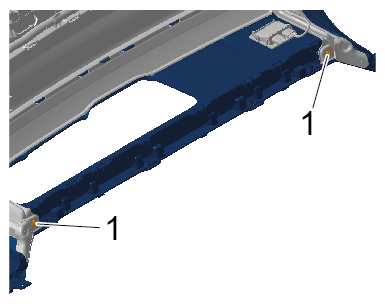

2. Unscrew fastening screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

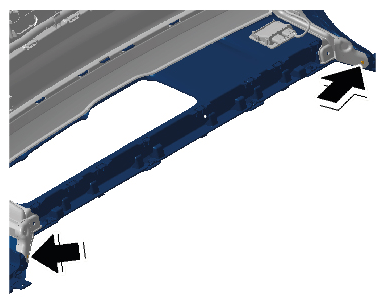

3. Drill out rivets -Arrows-  on heat shield.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rivets on heat shield

   Information

   Carefully bend the guide away. The upper section of the bonding area must not become detached.

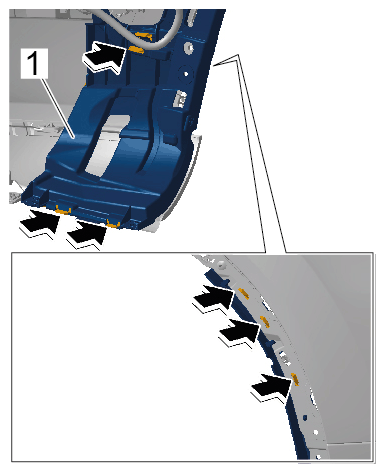

4. Loosen guides at the side -1- (-Arrows-)  until the fastenings for the rear panel are accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Guide at side of rear panel

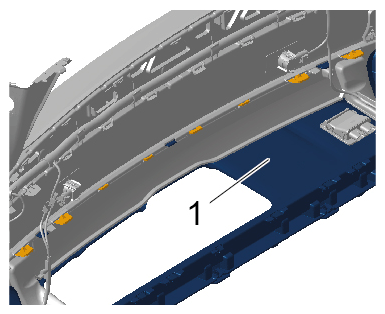

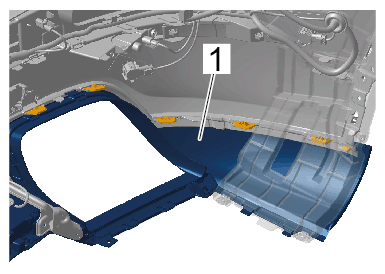

5. Unclip rear panel -1-  from rear apron.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear panel on rear apron, side

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear panel on rear apron, centre
