Disassembling Rear Apron

WARNING: This page is about a different variant/trim than selected.

Remove wire harness for ParkAssist.
- > 975919 REMOVING AND INSTALLING WIRING FOR PARKASSIST
Remove ParkAssist sensors.
- > 917519 REMOVING AND INSTALLING PARKASSIST SENSOR
Remove reflector.
- > 943819 REMOVING AND INSTALLING REFLECTOR
Remove rear panel.
- > 635619 REMOVING AND INSTALLING REAR PANEL
Remove rear skirt.
- > 636819 REMOVING AND INSTALLING REAR SKIRT
Remove cover on towing lug -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

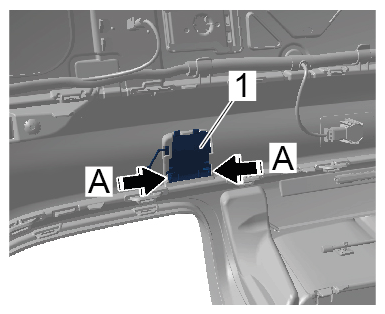

Cover for towing lug
1. 6.1 Release locking lugs -arrow A- .
2. 6.2 Unclip cover on towing lug -1- and release safety hook.
3. 6.3 Remove cover on towing lug -1- .
