Assembling Rear Apron
WARNING: This page is about a different variant/trim than selected.
- Assembly is performed in reverse order. For ParkAssist (I-no. 7X5)
, pay particular attention to the following:
- 1.1

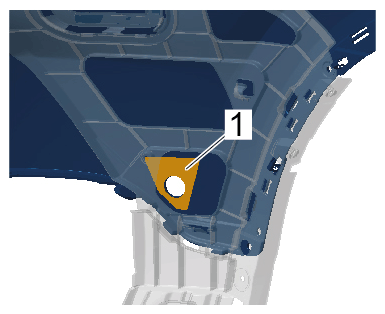

Clean bonding surface -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Bonding surface
- 1.2
Pull protective film -1-
off the adhesive tape.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Protective film on bonding surfaces
- 1.3
Affix the holders for the parking sensors on the contour of the rear apron mounting and press on evenly using a suitable tool.
