Technical values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

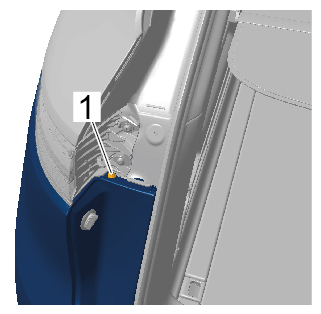

Screws securing rear bumper to retaining frame	Item 1	Tightening torque	2, 5 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing rear bumper to retaining frame

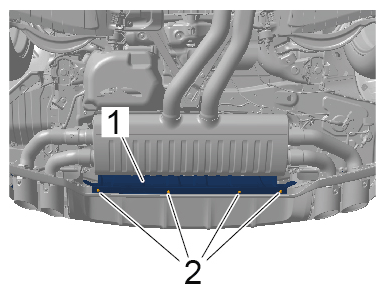

Screws securing heat shield to rear bumper	Item 2	Tightening torque	3, 5 Nm (2.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing heat shield to rear bumper

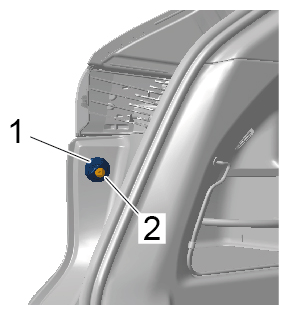

Screw securing anchor block tailgate to rear bumper	Item 2	Tightening torque	10 Nm (7.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing tailgate anchor block to rear bumper

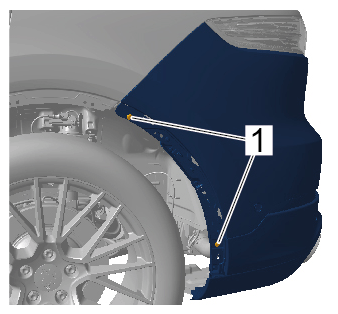

Screw securing rear bumper to frame for light	Item 1	Tightening torque	2, 5 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing rear bumper to frame for light
