Removing Lateral Retaining Strip

WARNING: This page is about a different variant/trim than selected.
  1. Unclip electric wire harness -Arrow-  .

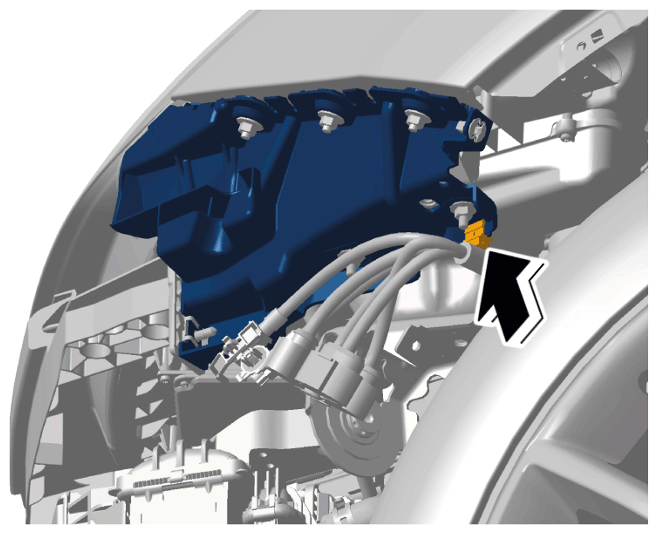

    G15237221Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

  2. Screw off fastening nuts -1-  .
  3. Unclip retaining clip -2-  .
  4. Remove retaining strip -3-  .

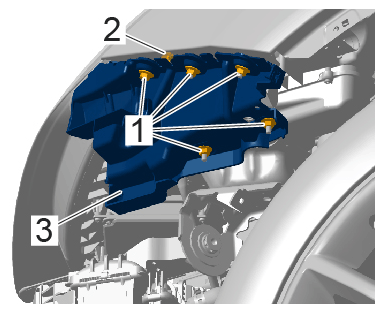

    G15237222Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening nuts
