Removing (Stainless Steel) Skid Plate
WARNING: This page is about a different variant/trim than selected.
- Bend up sheetmetal brackets by approx. 90°.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

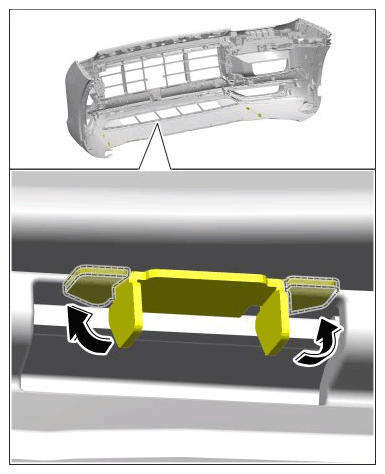

Front sheetmetal brackets
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

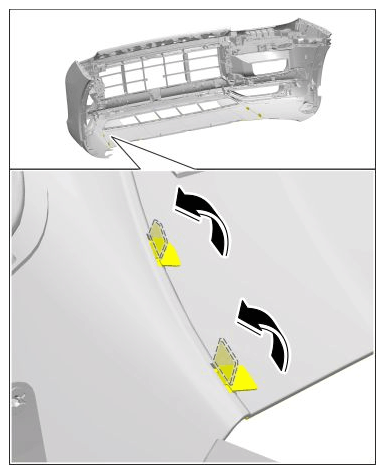

Sheetmetal brackets at the sides

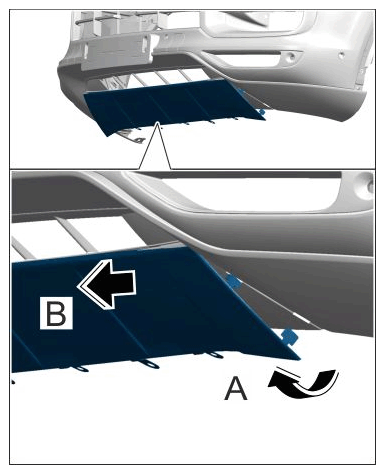

- Turn the skid plate outward -arrow A-
and remove it -arrow B-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Skid plate
