Installing (Stainless Steel) Skid Plate
WARNING: This page is about a different variant/trim than selected.
Information
The help of another person is required.

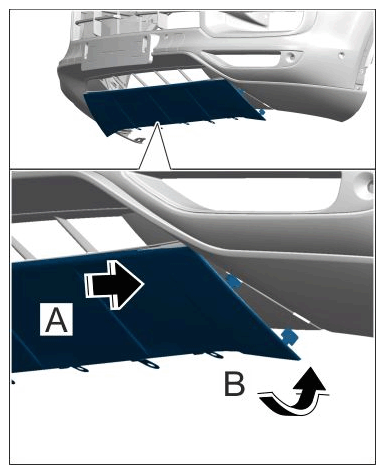

- Fit skid plate on the front of the front apron -arrow A-
and position it correctly -arrow B-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Skid plate

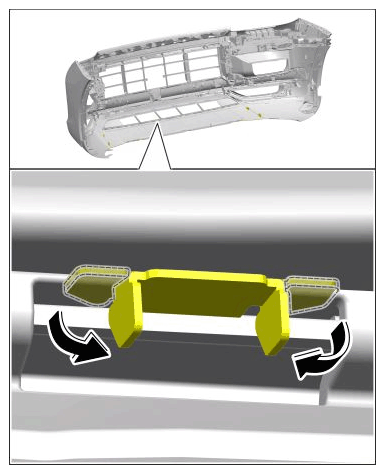

- Bend sheetmetal brackets over by approx. 90°.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Front sheetmetal brackets

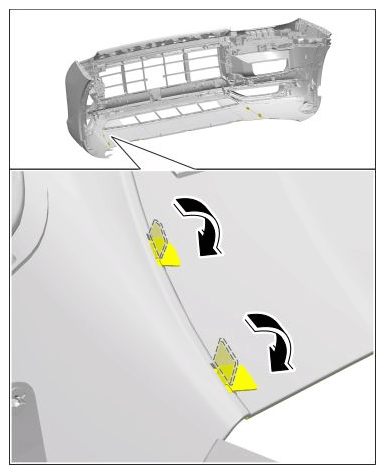

 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Sheetmetal brackets at the sides
