Disassembling Front Apron

Information

The number of electric plug connections, lines, fastening parts and sensors will vary depending on equipment.

1. Remove front air grille (basic).
   • > 66041901 REMOVING AND INSTALLING FRONT AIR GRILLE (BASIC)
2. Remove number plate cover.
   • > 668319 REMOVING AND INSTALLING NUMBER PLATE COVER
3. Remove front wire harness.
   • > 971519 REMOVING AND INSTALLING FRONT WIRE HARNESS
4. For USA vehicles (CO2):

   Remove side marker light.

   • > 945219 REMOVING AND INSTALLING SIDE MARKER LIGHT
5. Remove front spoiler.
   • > 660319 REMOVING AND INSTALLING FRONT SPOILER

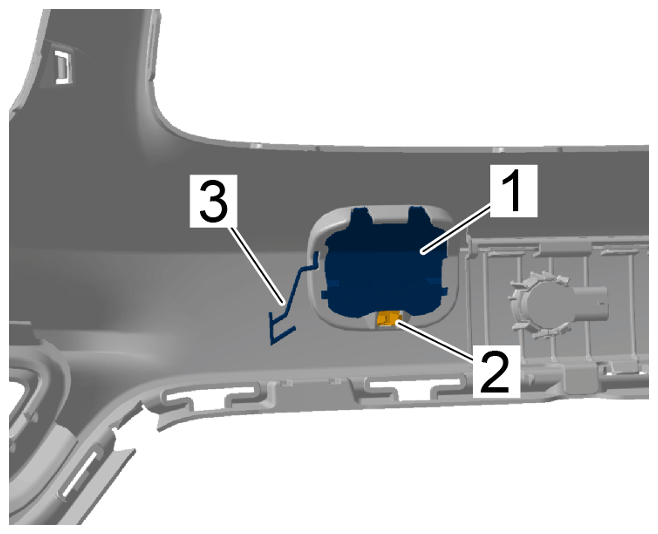

6. Unclip cover on towing lug -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover for towing lug

   1. 6.1  Release locking lug -2-  and press out cover on towing lug -1-  .
   2. 6.2  Unhook safety strap -3-  .
7. Remove lateral reinforcement -2-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lateral reinforcement

   1. 7.1  Drill through blind rivets -1-  on the lateral reinforcement -2-  . > Diameter 4 mm
   2. 7.2  Unclip lateral reinforcement -2- (-3-)  .
8. Unclip lower side moulding -1- (-2-)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lower side moulding

9. Unclip holder -1-  together with ParkAssist parking sensor -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Parking sensor holder

10. For ParkAssist (I-no. 7X5)

    Unclip ParkAssist parking sensor -1-  from holder -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    ParkAssist parking sensor
