Assembling Front Apron

Information

The bonding surfaces must be clean and free of grease.

Information

Temperature

• A processing temperature of between 20°C and 25°C applies to the surrounding area and materials.

1. For ParkAssist (I-no. 7X5):

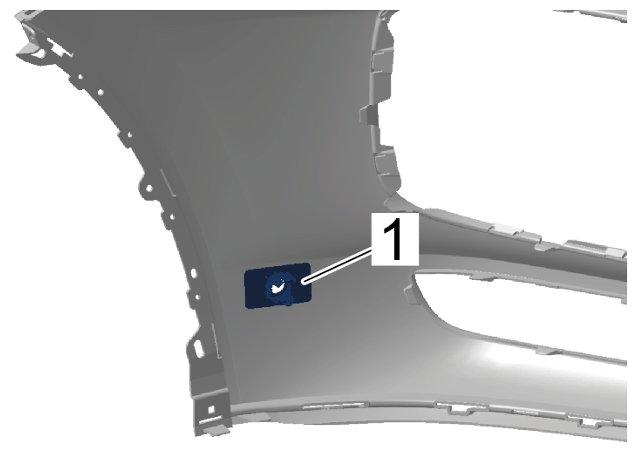

   Clean bonding surface -1-  with isopropanol.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding surface

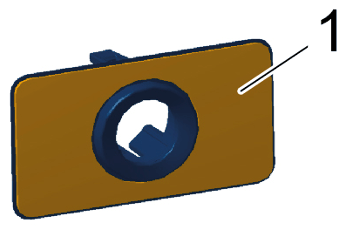

2. Pull protective film -1-  off the adhesive tape.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Protective film

3. Affix the holders for the ParkAssist parking sensors -1-  on the contour of the front apron mounting and press on evenly using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   ParkAssist parking sensor holder

4. The remaining installation steps are performed in reverse order.
