Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Screw securing air duct for brake to front apron, bottom	Item 1	Tightening torque	3 Nm (2 ftlb.)

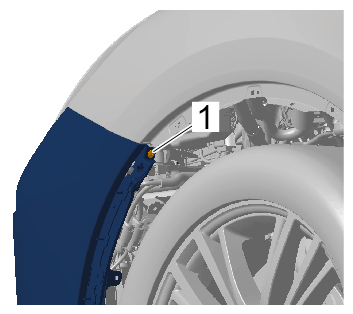

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on air duct for brake
Screw securing front apron to wing	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)

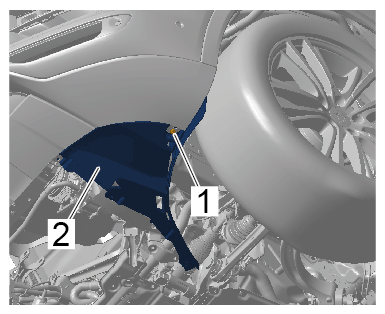

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on front apron
Screws securing front apron to front end, bottom	Item 1	Tightening torque	4.5 Nm (3.25 ftlb.)

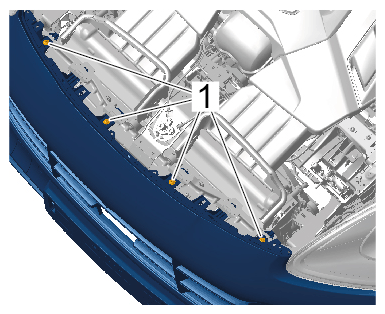

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing front apron to front end at the bottom
Screws securing front apron to front end, top	Item 1	Tightening torque	3 Nm (2 ftlb.)

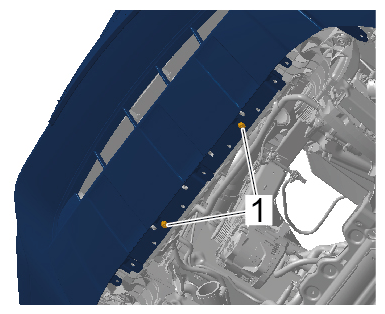

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing front apron to front end at the top
